Atlas Automotive Equipment 7K Kwik-Bay Portable Mid-Rise Scissor Lift — 7,000 lb. Capacity

The Atlas 7K Kwik-Bay is the lift built for shops that need serious lifting capacity without committing a full bay — portable, free-standing, and ready to work without anchoring to the floor.

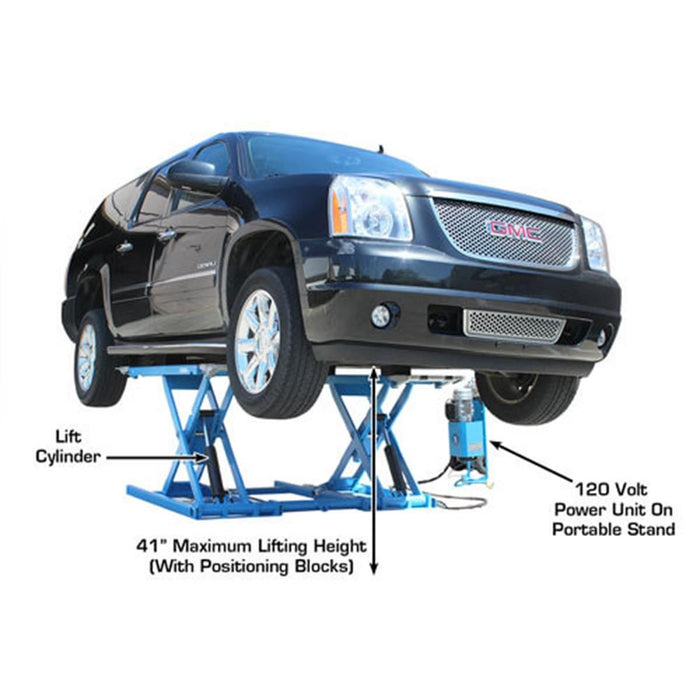

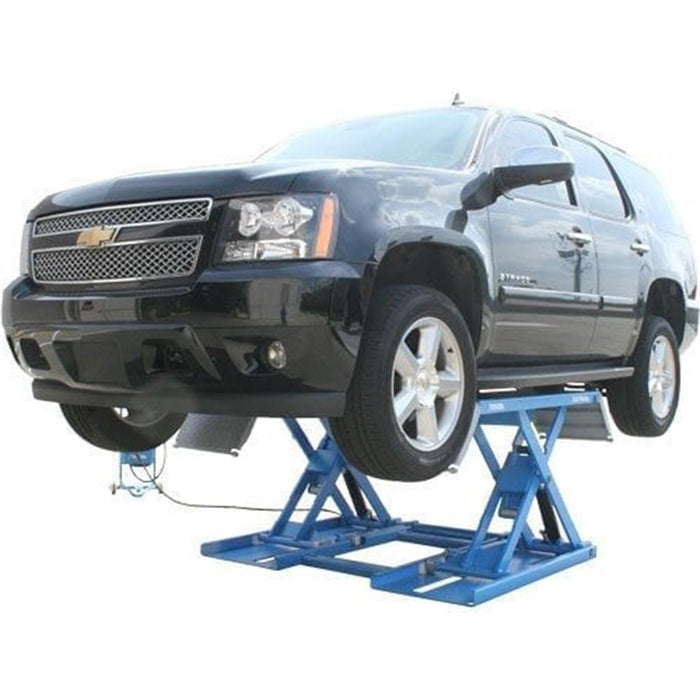

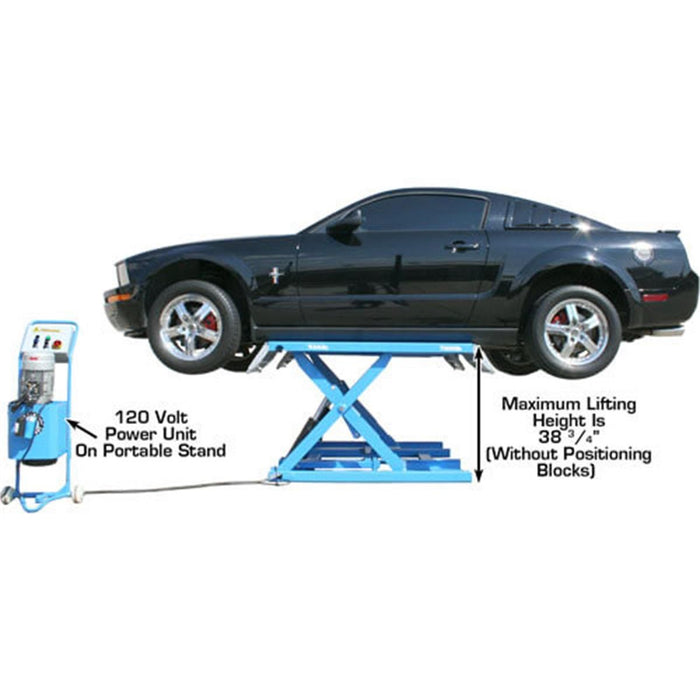

At 7,000 lbs. of capacity and 41" of maximum lifting height, the Kwik-Bay handles everything from compact cars to full-size trucks at a comfortable working height. The vehicle drives straight over the scissor ramps — no arm positioning, no lifting points to hunt for. Drop the rubber blocks under the correct contact points, hit the button, and you're working. Fast, repeatable, and far less chance of undercarriage damage than column lifts that require precise arm placement.

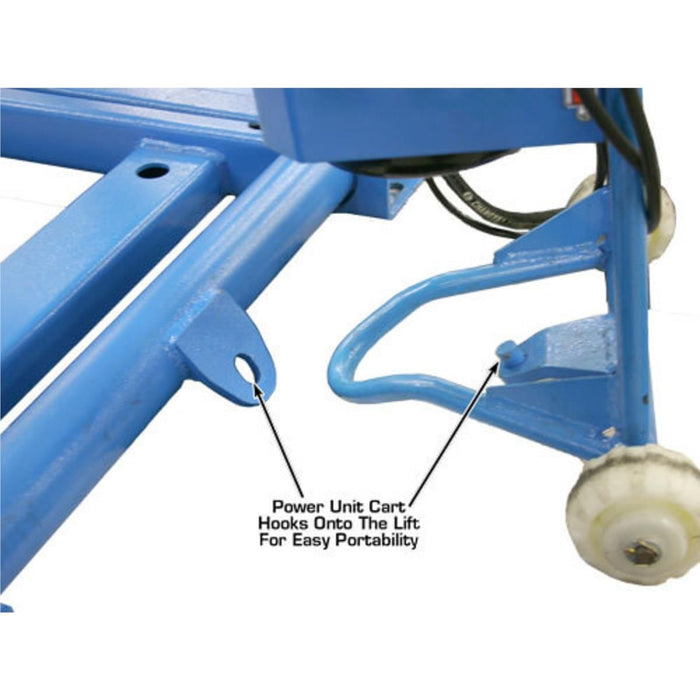

Portable and Free-Standing — No Permanent Installation The Kwik-Bay doesn't bolt to the floor and doesn't require a dedicated bay. Roll it into position when you need it, store it out of the way when you don't. It's the ideal solution for quick-service bays, tire shops, and multi-purpose spaces that can't afford to dedicate square footage to a fixed lift.

Open Center Design for Full Underside Access The unique open-center platform gives technicians unrestricted access to the middle of the vehicle's underside — transmission pans, exhaust systems, driveshafts, and other components that a full-superstructure lift would block. Combined with 41" of lifting height, your techs work standing up, not crouched under a low-rise jack.

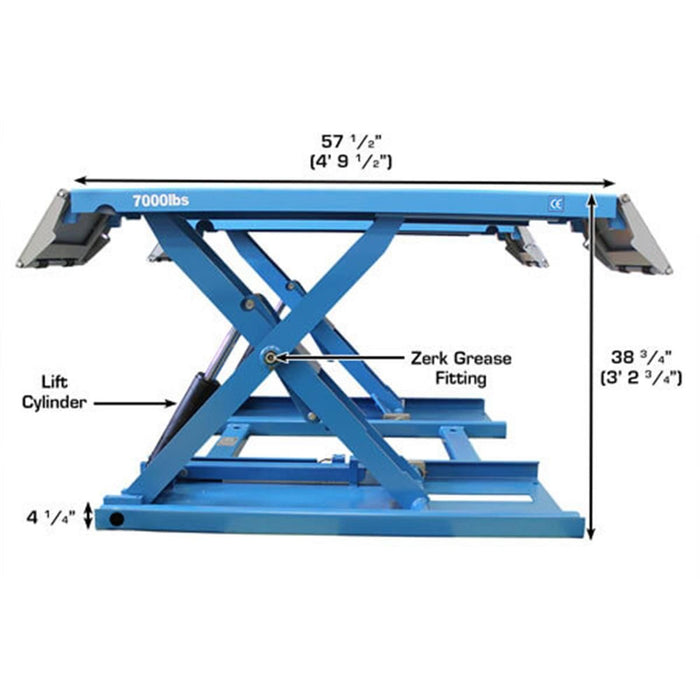

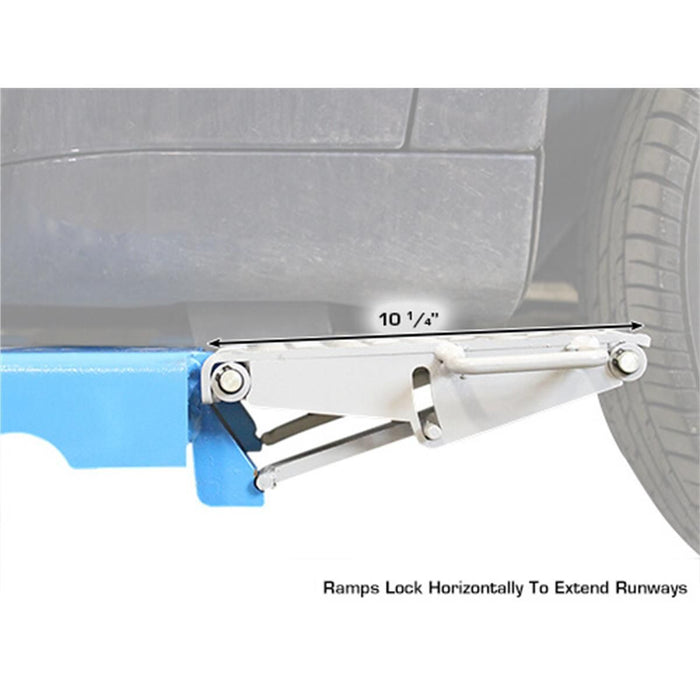

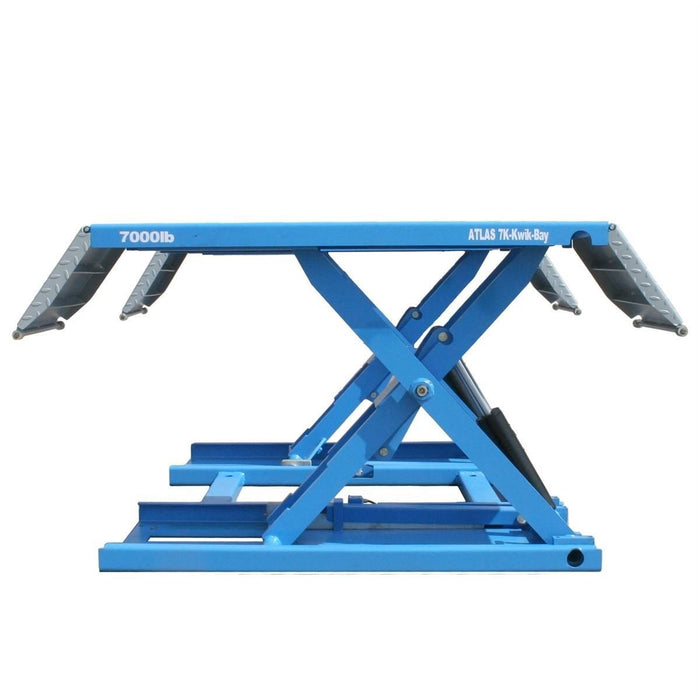

Expandable Platform for Longer Vehicles The drive-over approach ramps lock into a horizontal position, extending the effective lifting surface from 57½" to 78". That extra reach makes the Kwik-Bay capable of handling longer wheelbase trucks and SUVs without repositioning.

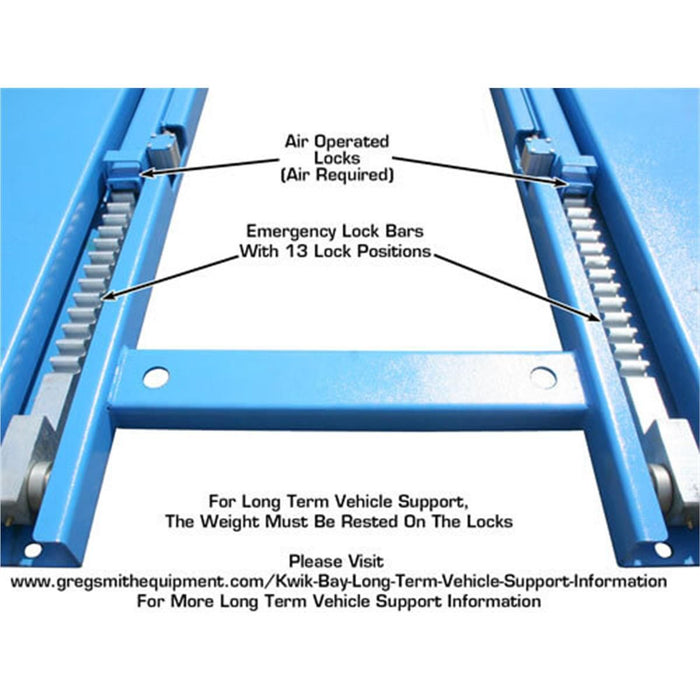

Dual Cylinders and Solid Safety Locks Two power cylinders lift in sync, and the solid safety lock bars hold the platform rock-steady at every lock position. The air-operated single-point lock release drops all locks simultaneously — one trigger, fully down, no walking around.

WHAT'S INCLUDED

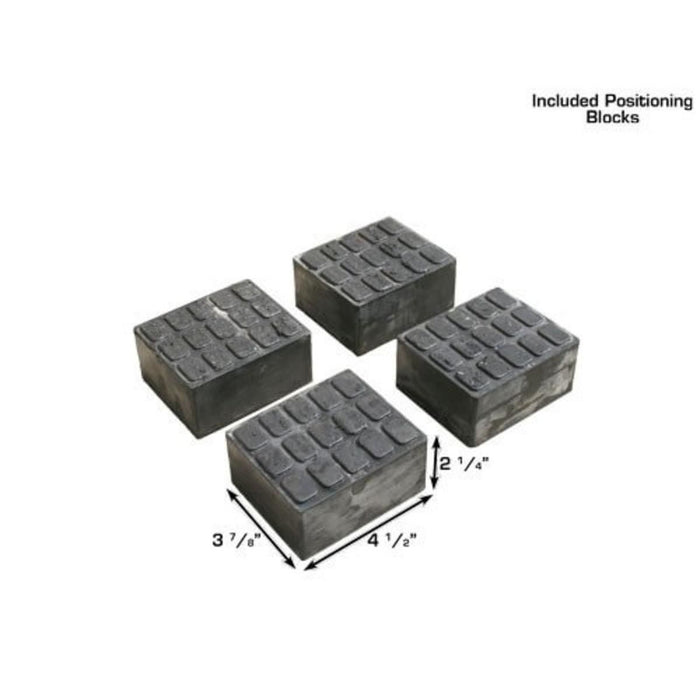

• Heavy Duty Rubber Lifting Blocks
• Drive-Over Approach Ramps

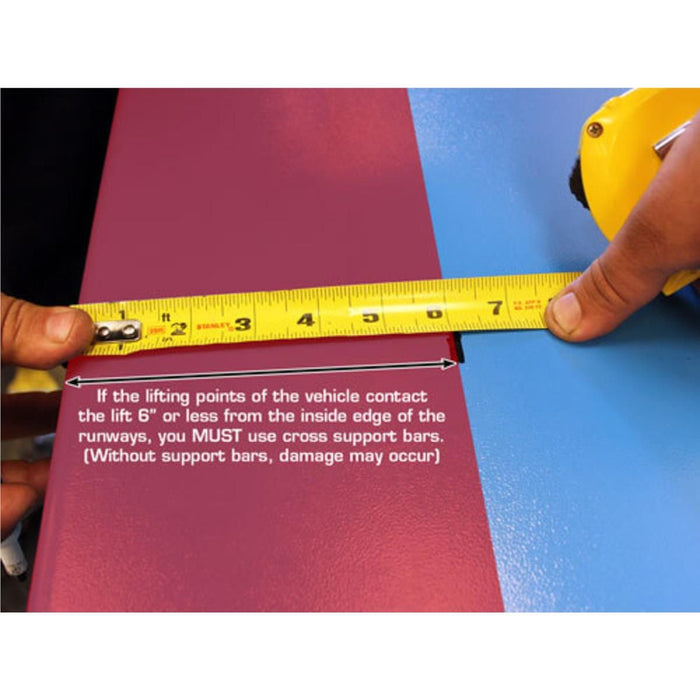

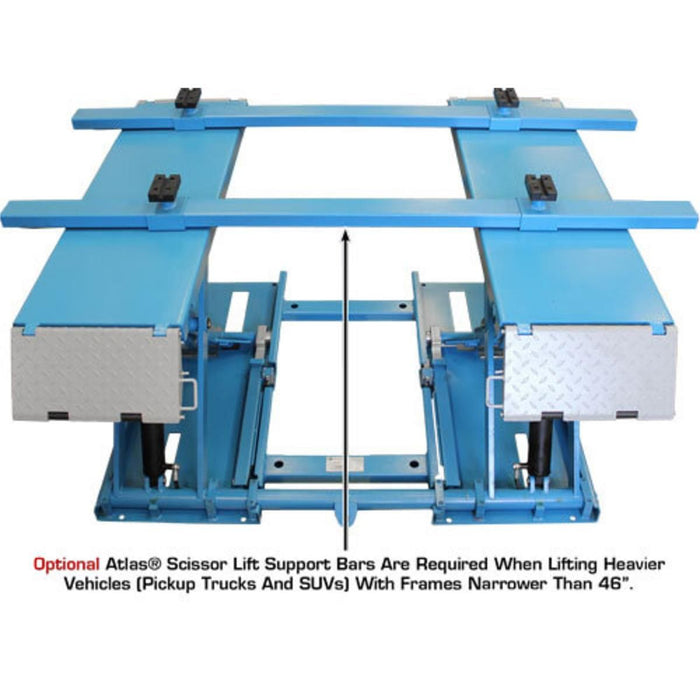

External air supply required. Plug not included. Scissor lift support bar kit available separately for narrow-frame heavy vehicles.

INSTALLATION REQUIREMENTS

• Electrical: 110V, 30-amp breaker required
• Air: 90–120 PSI external air supply required
• Floor: No anchoring required — free-standing

SPECIFICATIONS
