Atlas Automotive Equipment 412 Heavy Duty 12,000 lb. 4-Post Lift
Speak To An Expert
Questions? Call Us on (480) 827-6912
The Atlas 412 is the heavy-duty 4-post lift built for shops that need to go beyond the basics — more capacity, more clearance, and more room to work than standard-duty lifts, at a price that doesn't require you to compromise anywhere else.

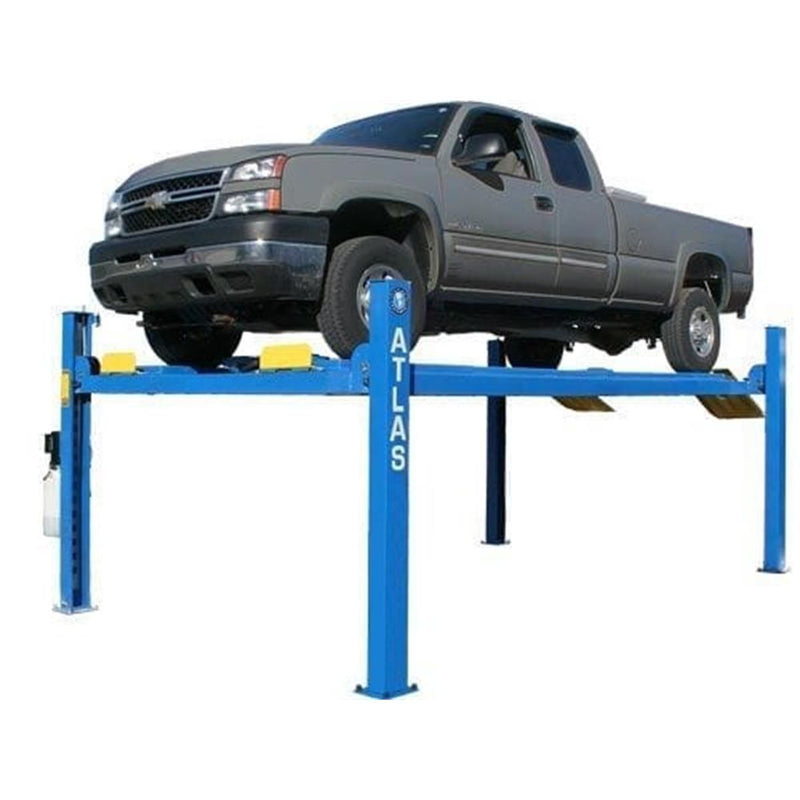

At 12,000 lbs. of lifting capacity with diamond-plated runways, extra-tall columns, and a double-lock safety system, the 412 handles everything from full-size trucks and SUVs to commercial vans with confidence. This is the lift shops buy when they're done outgrowing their equipment.

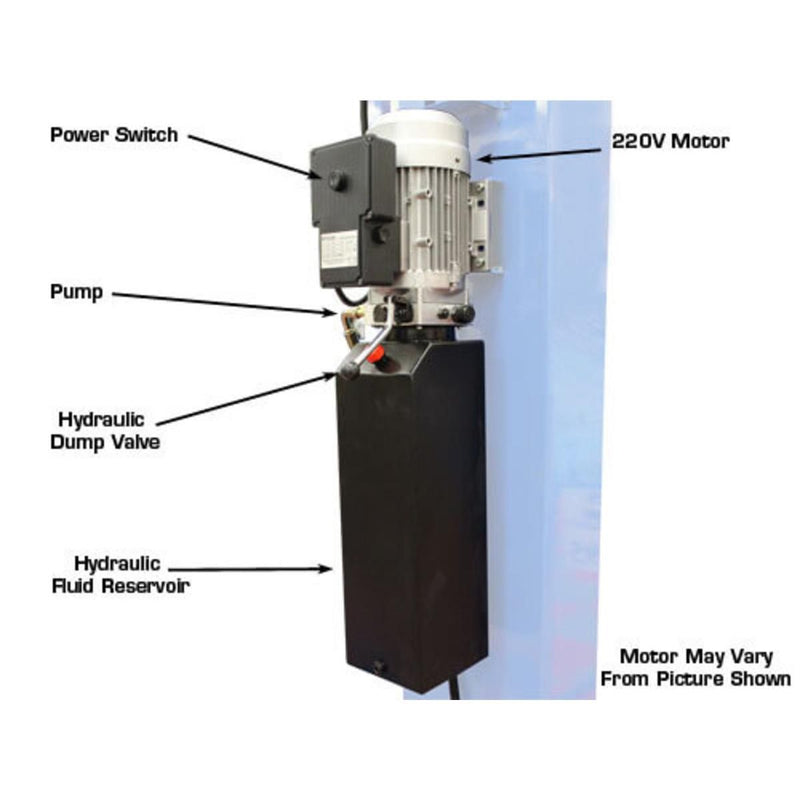

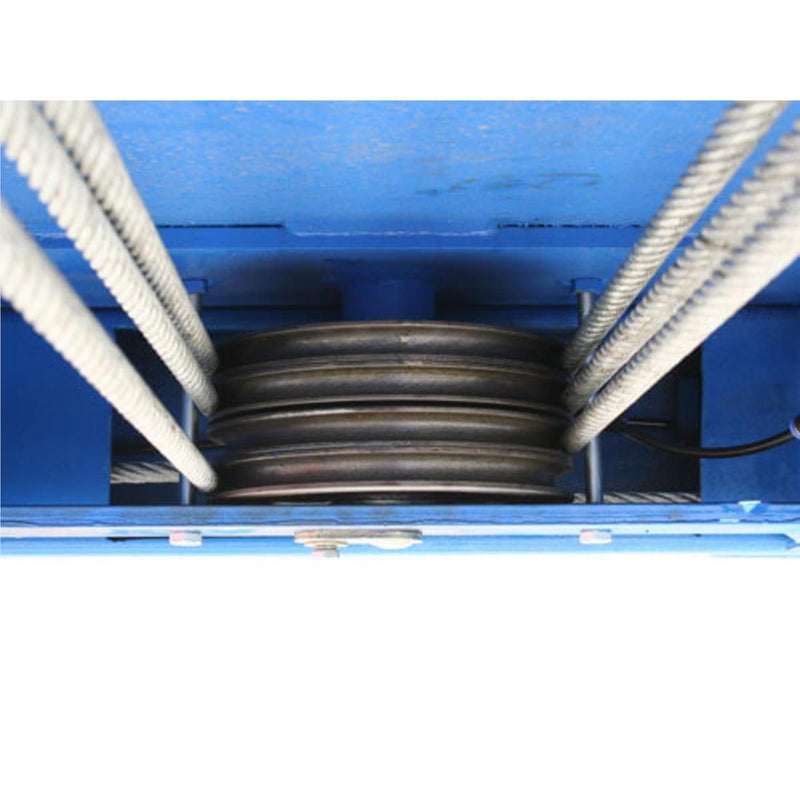

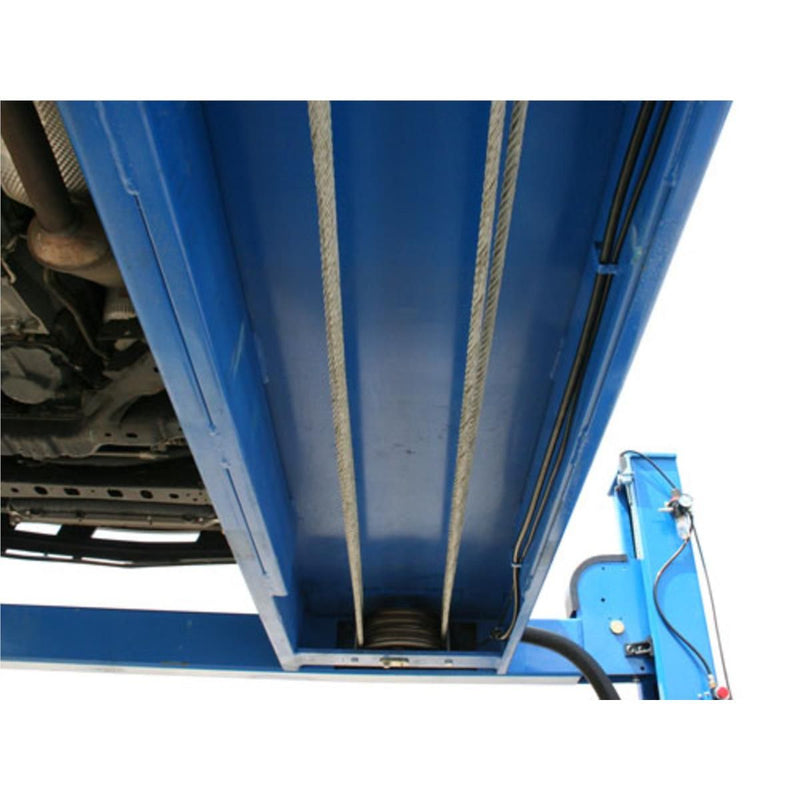

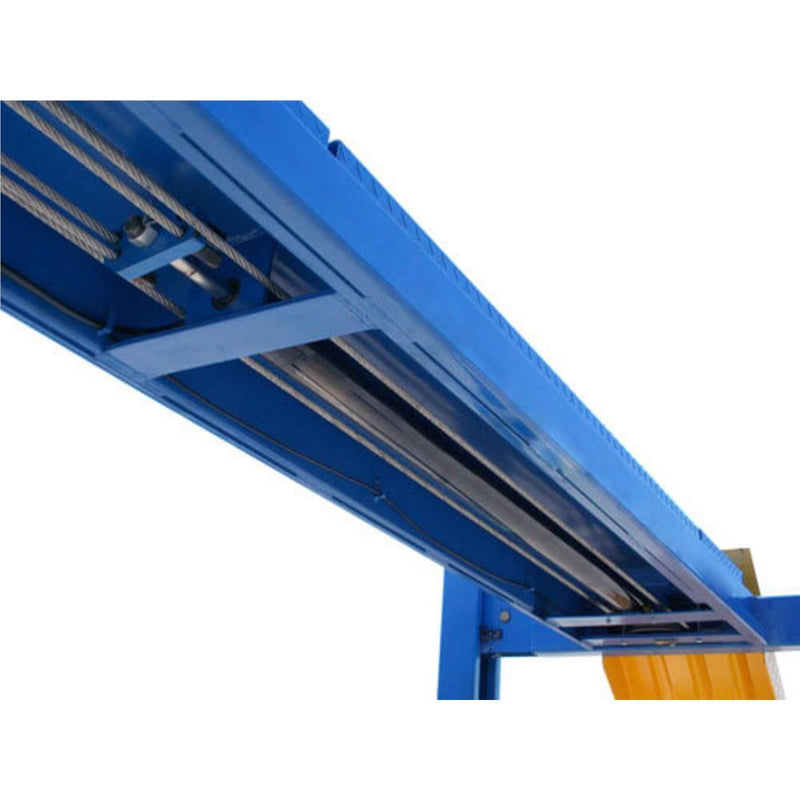

Cable Lift System — Not Chain The Atlas 412 uses a high-strength cable system powered by an under-runway oversized hydraulic cylinder. Many competitors still rely on an old-style chain lifting system with an exposed hydraulic cylinder — which is harder to level properly and a common source of door dings. The 412 eliminates both problems.

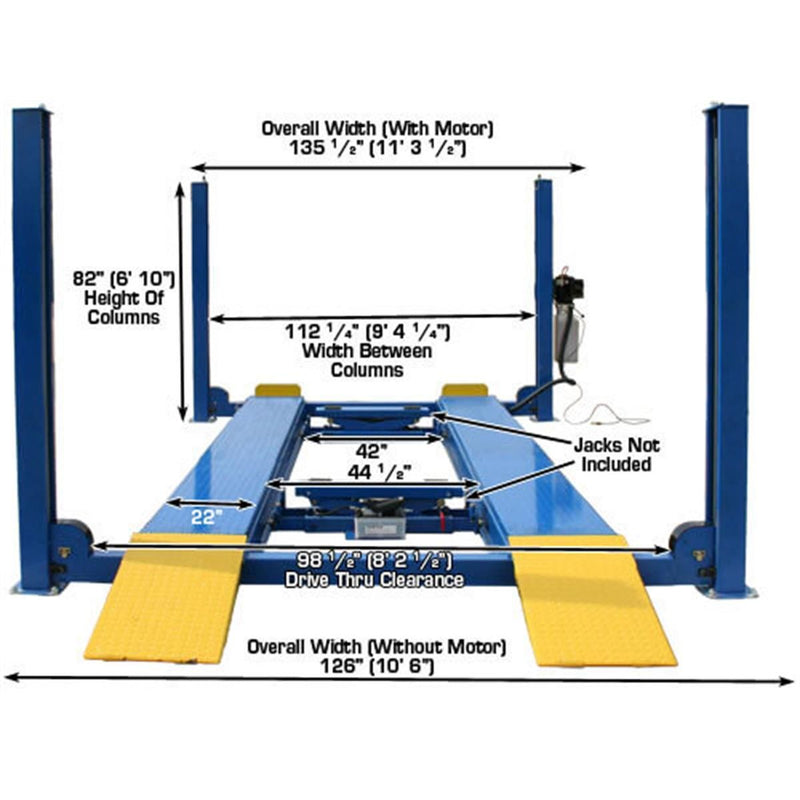

Extra Tall, Extra Wide, Extra Long With 77¾" of lifting height, 126¼" between columns (without motor), and runways stretching 194½" long, the 412 gives you the clearance and footprint to handle the largest vehicles in the bay. The 20" wide diamond-plated runways provide a stable, slip-resistant platform for every job.

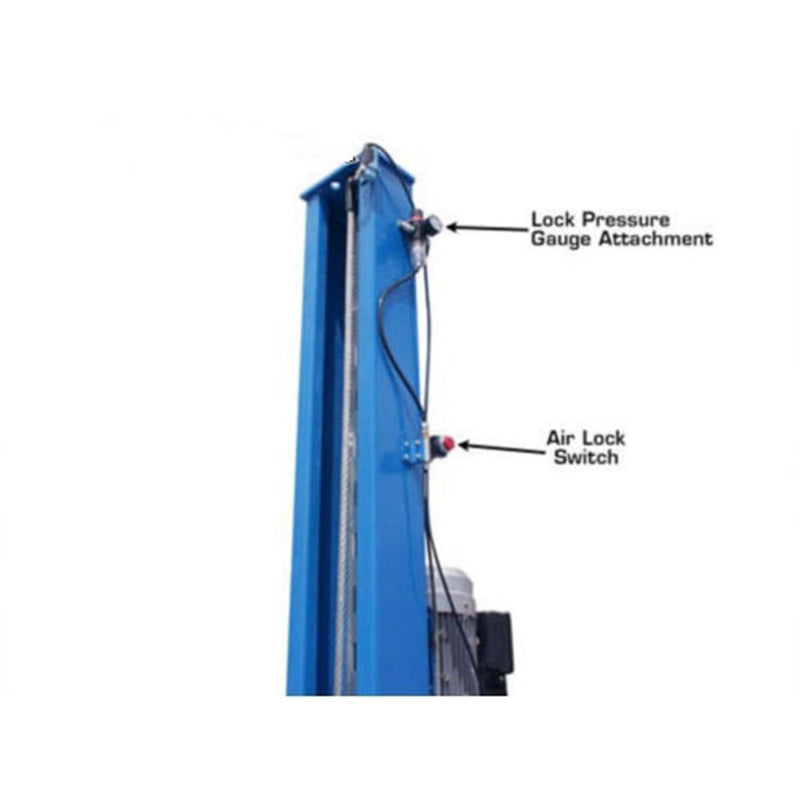

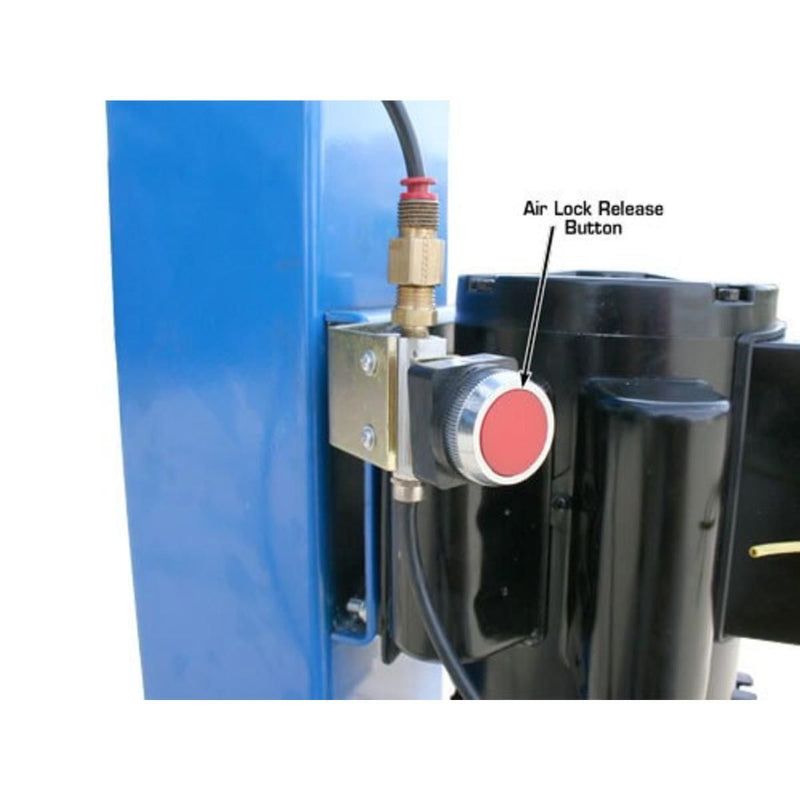

Air-Operated Single Point Lock Release One trigger releases all four locks simultaneously — no walking around the lift, no mismatched lock positions, no wasted time. Fast, safe, and consistent on every cycle.
Ready for a Rolling Bridge Jack The 412 features built-in tracks between the runways to accommodate a rolling bridge jack — letting you drop the suspension, swap axles, or service brakes without pulling the vehicle off the lift. Compatible with the Atlas RJ6BK Rolling Bridge Jack (sold separately).
Built to Last, Backed by Atlas Powder coat finish, steel approach ramps included, mounting hardware included, and covered by Atlas's industry-leading 5-year structural / 2-year hydraulic warranty (parts only).
WHAT'S INCLUDED
- Steel Approach Ramps

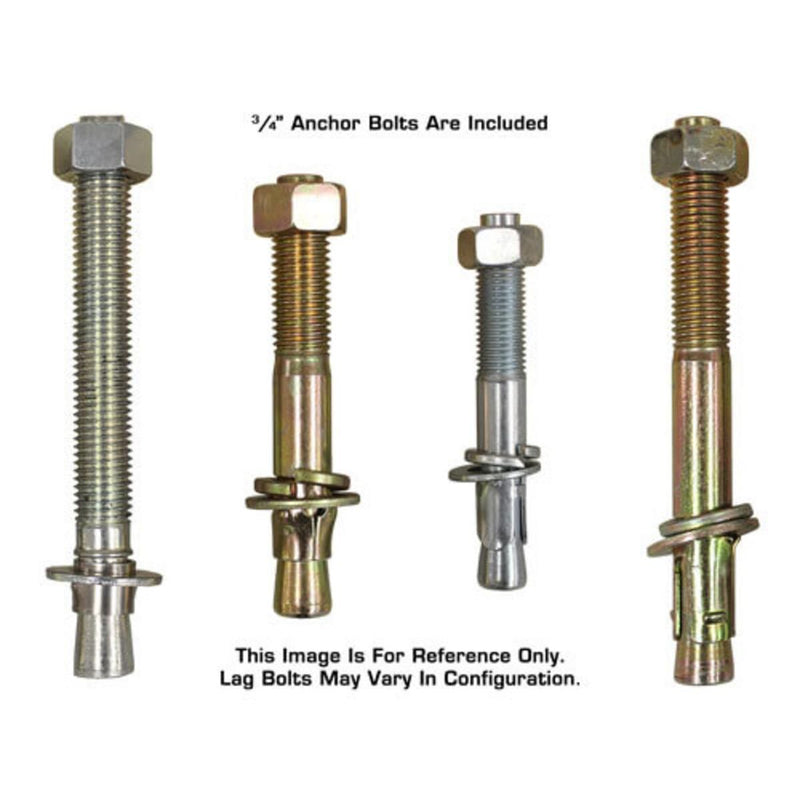

- Mounting Hardware
- Owner's Manual
Rolling Bridge Jack sold separately. External air supply required. Oil (3–5 gallons AW32/AW46) not included.
INSTALLATION REQUIREMENTS
- Electrical: 220V / 1-phase, 30-amp breaker required
- Air: 85–115 PSI external air supply required
- Concrete: Minimum 6" thick, 3,000 PSI rating
SPECIFICATIONS
| Spec | Detail |
|---|---|
| Capacity | 12,000 lbs. |
| Lifting Height | 77¾" (6' 5¾") |
| Overall Width — Without Motor | 126¼" (10' 6¼") |
| Overall Width — With Motor | 135¼" (11' 3¼") |
| Overall Length With Approach Ramp | 236½" (19' 8½") |
| Length Between Columns | 183¼" (15' 3¼") |
| Runway Length | 194½" (16' 2½") |
| Runway Width | 20" |
| Width Between Runways | 43¼" (w/ Rail: 39¾") |
| Outside Runway to Outside Runway | 83¼" (6' 11¼") |
| Clearance Under Runways | 70¼" (5' 10¼") |
| Clearance Between Columns | 112⅝" (9' 4⅝") |
| Column Height | 89¾" (7' 5¾") |
| Maximum Wheelbase | 185" (15' 5") |
| Drive-Thru Width | 98" (8' 2") |
| Air Requirement | 85–115 PSI |
| Electrical | 220V / 1-phase, 30-amp breaker |
| Oil Requirement | 3–5 gal. AW32/AW46 (not included) |

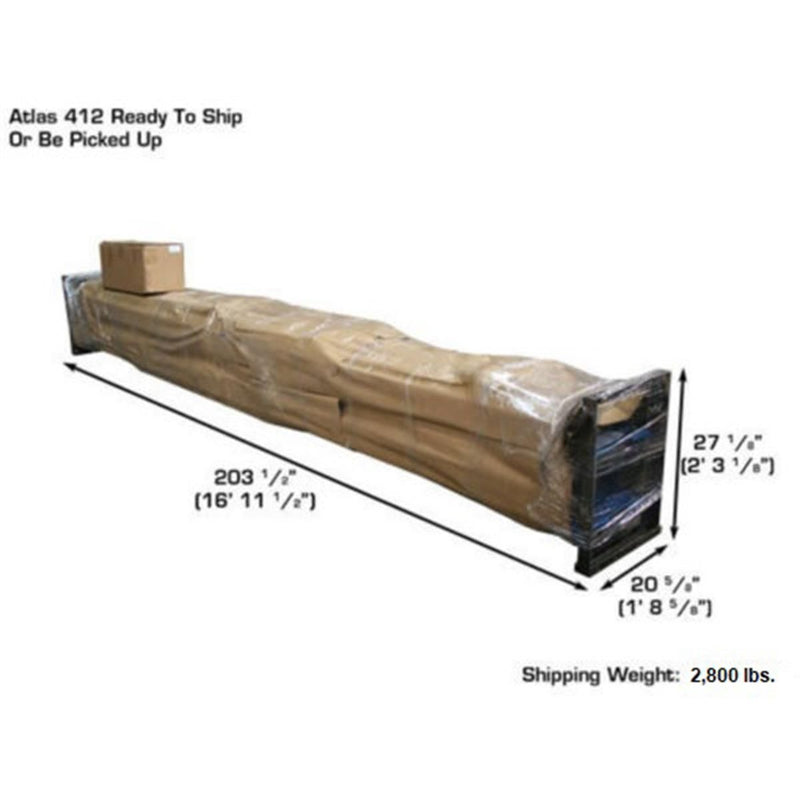

| Shipping Weight | 2,800 lbs. |
| Warranty | 5-Year Structural / 2-Year Hydraulic |
| Shipping | Freight Included (LTL) |
