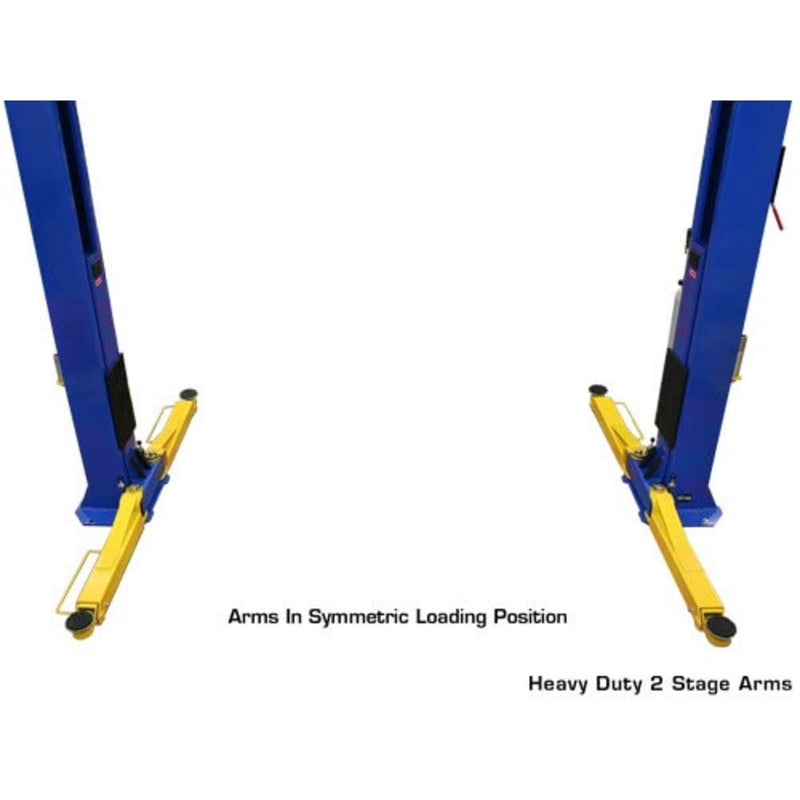

Atlas Automotive Equipment OHX10000X Extra Tall 2-Post Lift — 10,000 lb. Capacity

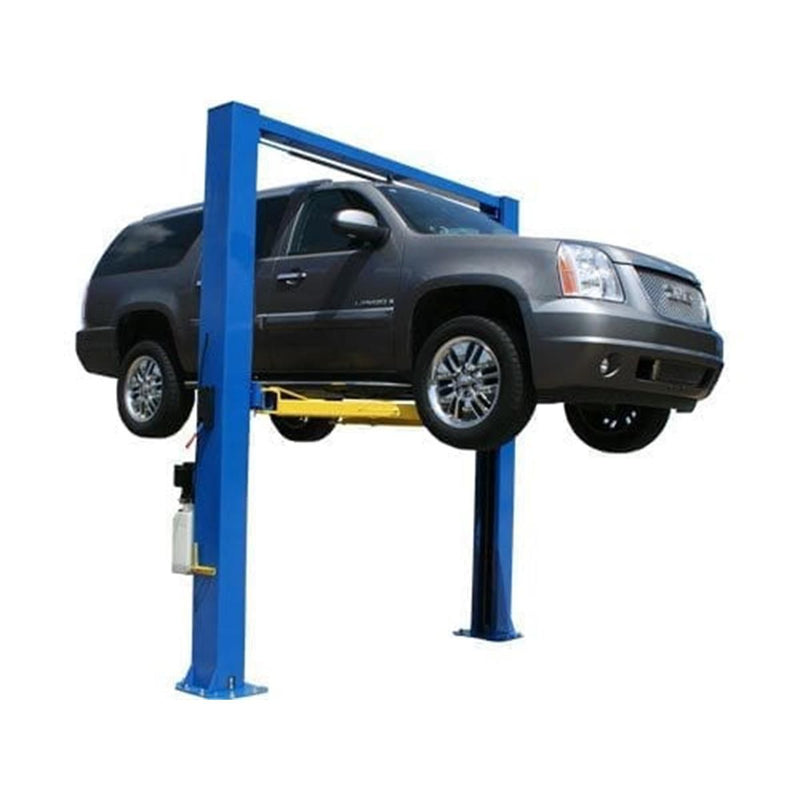

The Atlas OHX10000X is the extra-tall, extra-wide 2-post lift engineered specifically for shops that work on larger vehicles — one-ton duallys, full-size vans, commercial trucks, and long-wheelbase SUVs that standard-size 2-post lifts simply weren't built for.

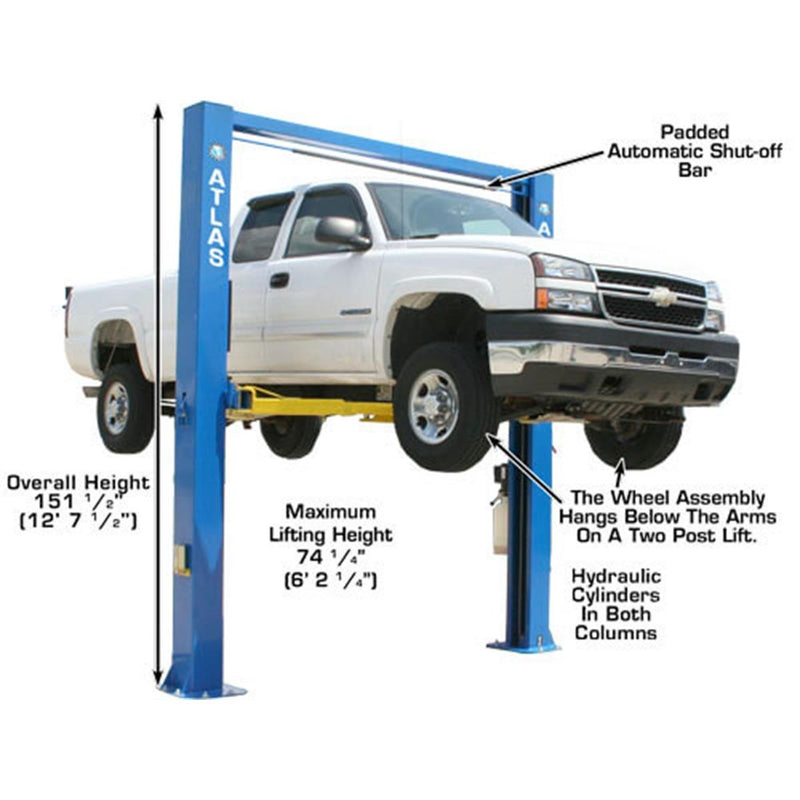

At 152" tall (12' 8") with a 12-piece truck adapter set included, the OHX10000X gives you the clearance, reach, and true 10,000 lb. capacity to handle the heaviest vehicles in your bay without compromise. If your techs are over 6'1" and tired of ducking under lifts, the OHX10000X's longer cylinders raise vehicles approximately 3" higher than comparable lifts — giving everyone in the shop a comfortable, upright working position.

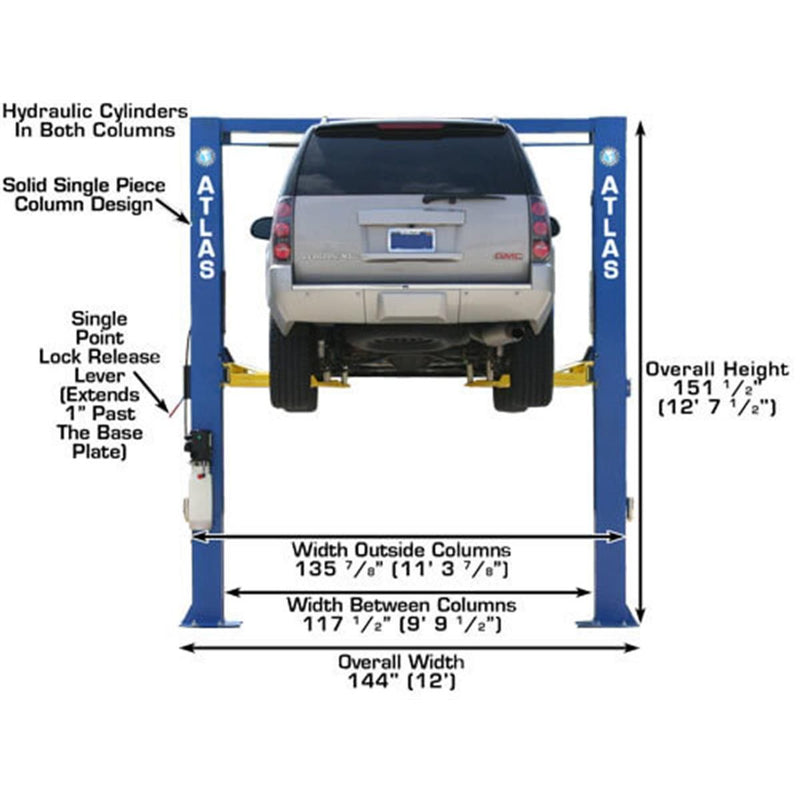

Extra Wide for Large Commercial Vehicles With 136" between columns (outside-to-outside) and 106⅞" of drive-thru width, the OHX10000X was designed around the real-world dimensions of one-ton diesels, cargo vans, and extended-cab trucks. The extra column spacing creates a built-in 6" "fudge factor" when driving through or maneuvering in a tight bay — a small margin that prevents a lot of scraped mirrors and damaged door edges.

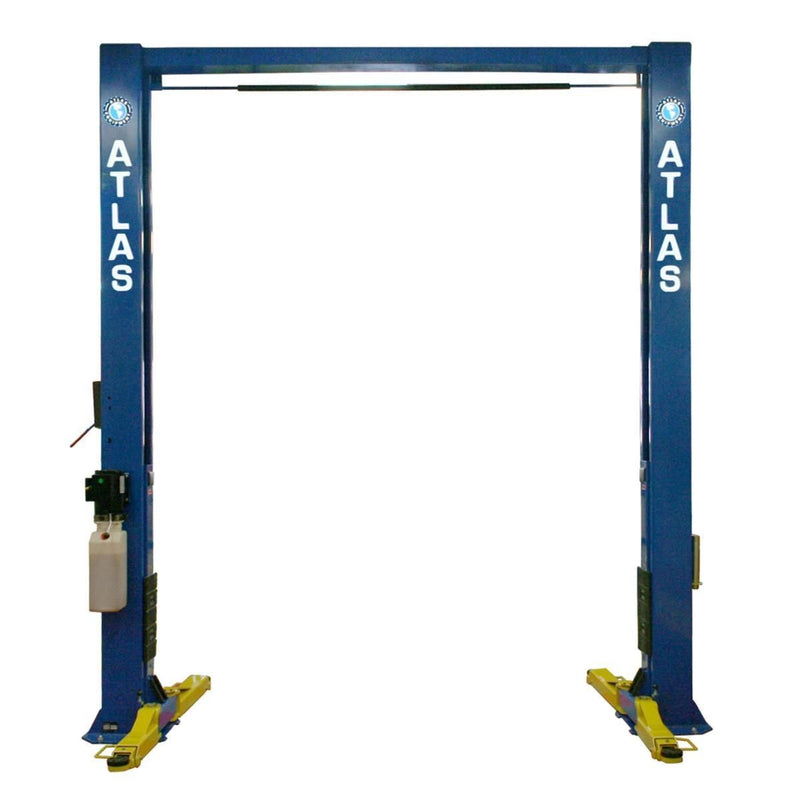

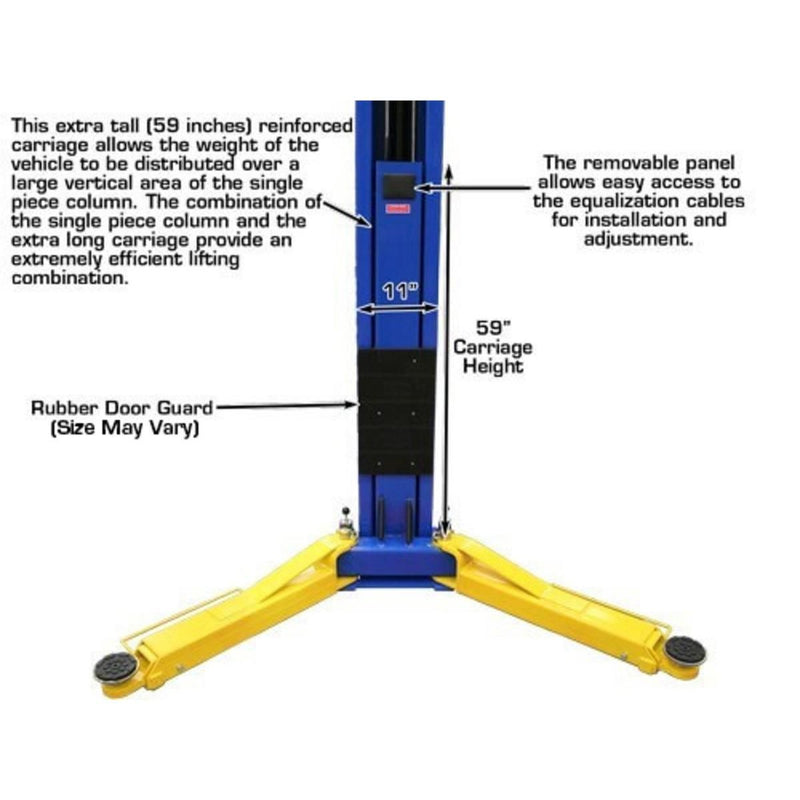

Single-Piece 12' 7" Formed Column The OHX10000X uses a single-piece formed column with an extra-long carriage for maximum column and arm strength. There are no welds or joints in the column to become weak points under load — just one continuous piece of heavy-gauge steel. Note: single-piece columns require a minimum 13-foot ceiling clearance for installation.

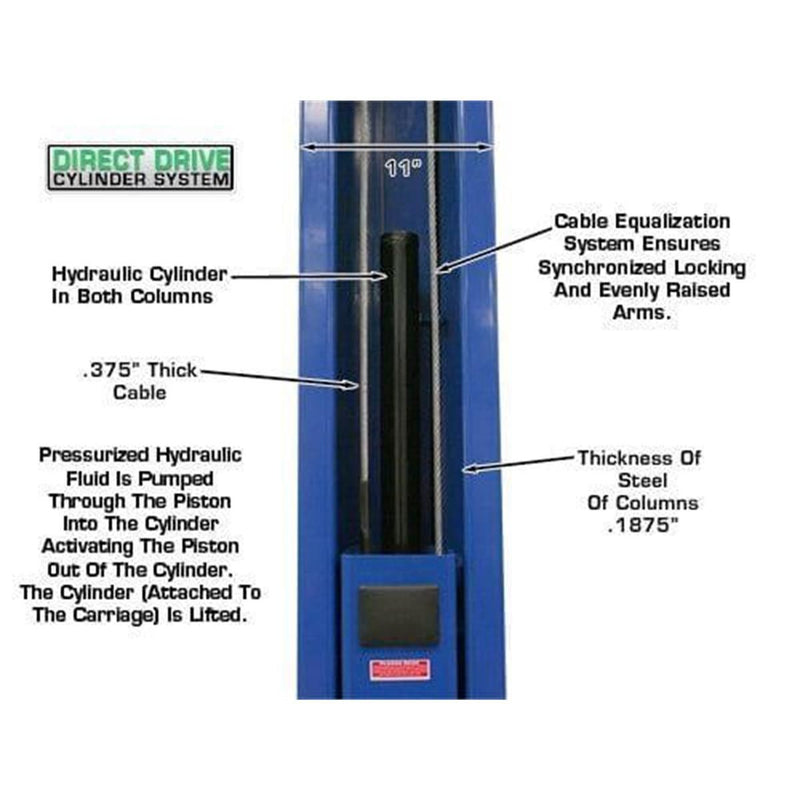

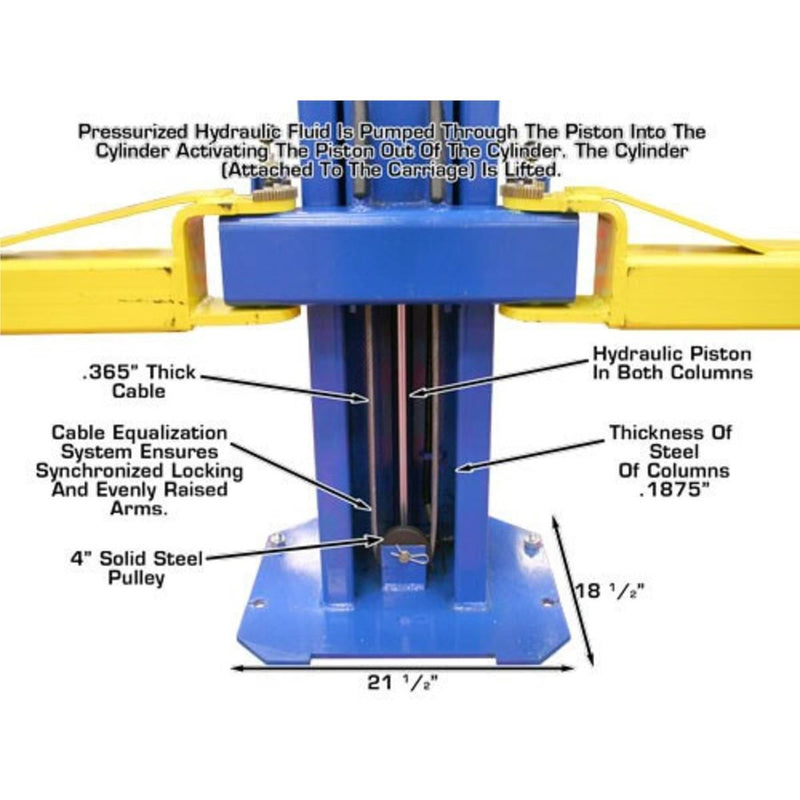

Dual Direct-Drive Cylinders Two cylinders drive the lift directly with no chains, cables, or intermediate linkage to wear out or go slack. Fewer moving parts means fewer maintenance issues and more consistent, reliable performance across thousands of lift cycles.

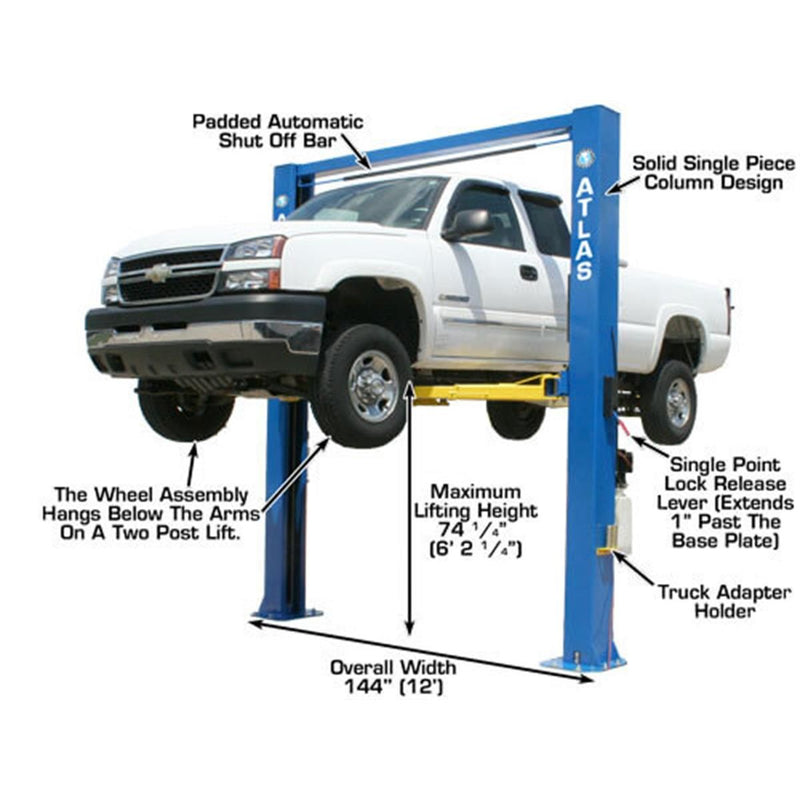

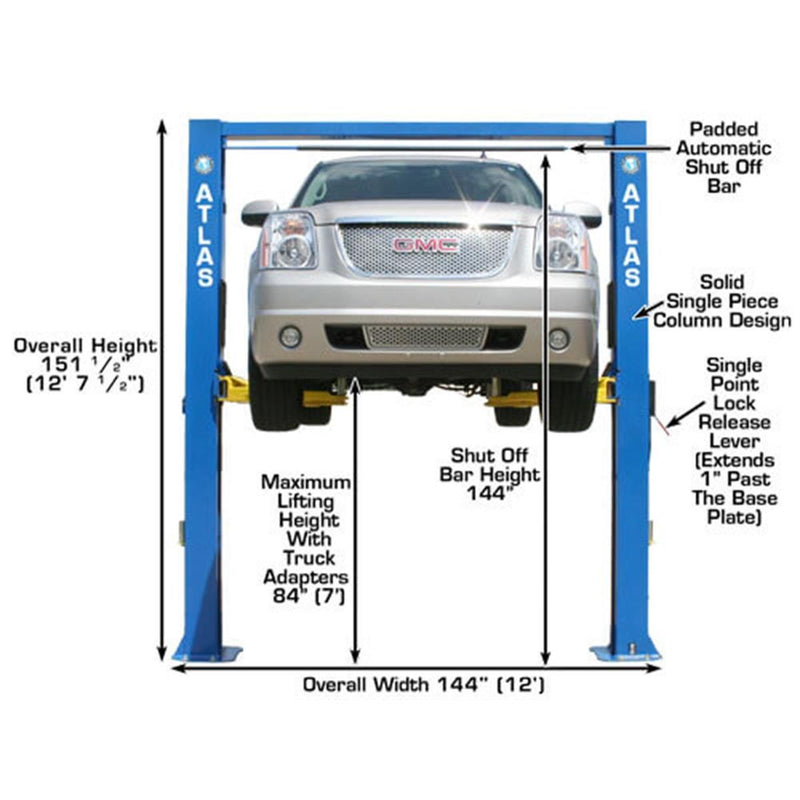

Padded Shut-Off Bar for Added Safety The padded shut-off bar automatically stops the lift if contact is made during the lowering cycle — a critical safety feature in busy shop environments where a technician's hand or a tool left on the carriage could otherwise cause damage or injury.

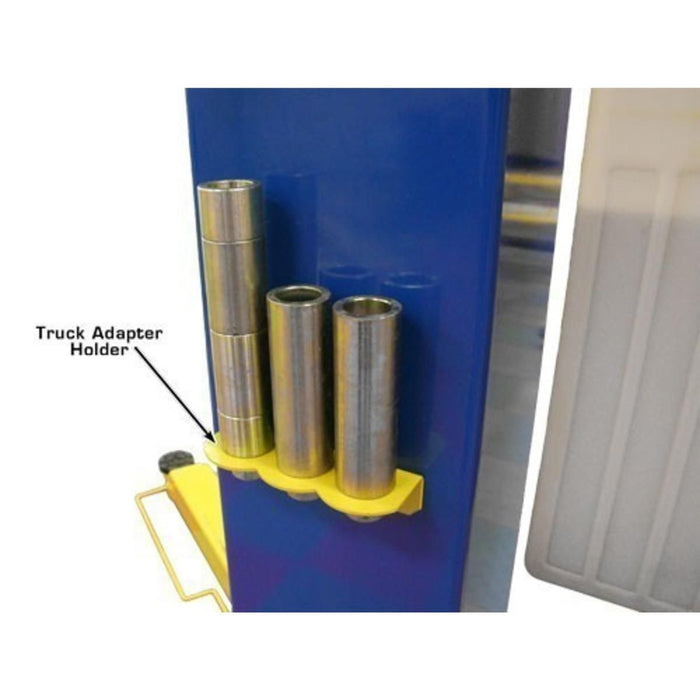

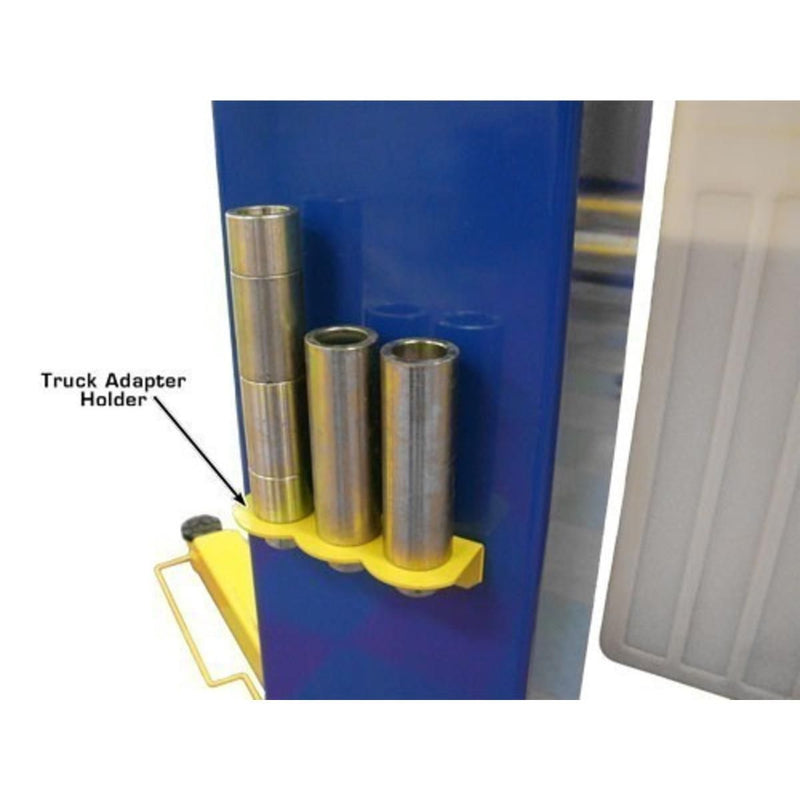

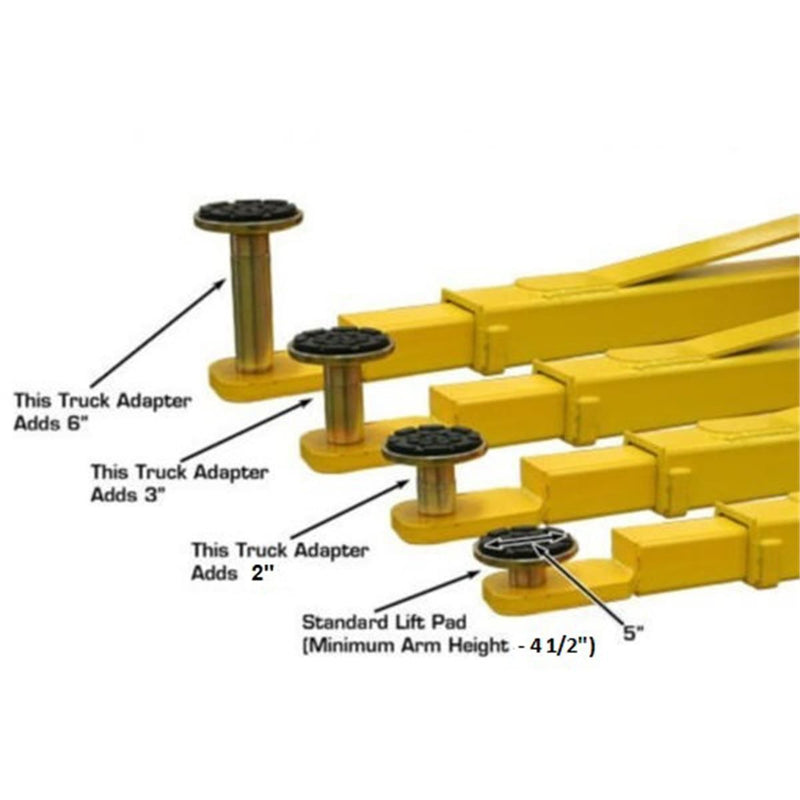

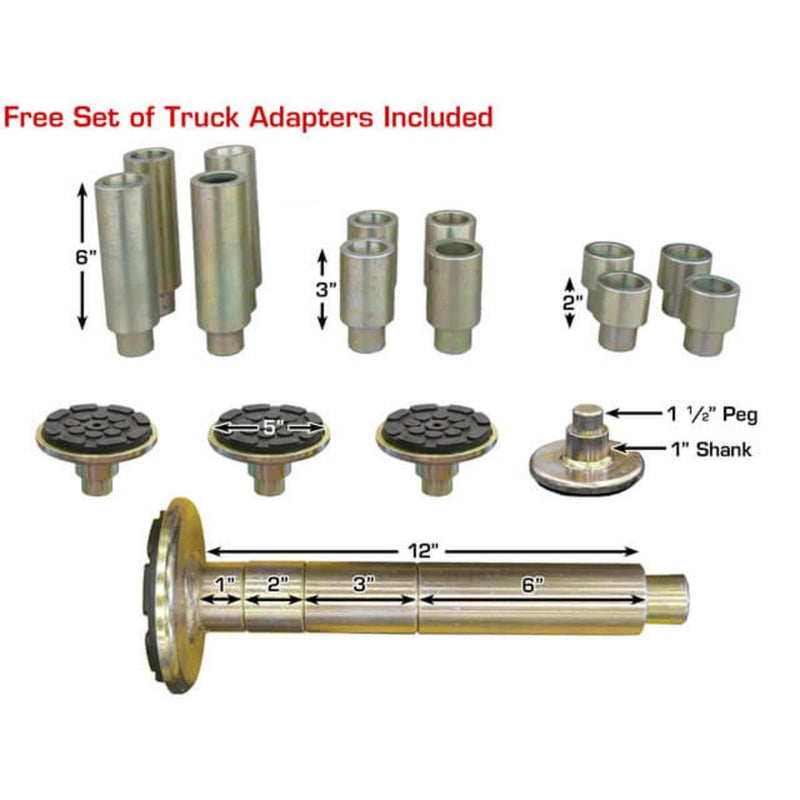

12-Piece Truck Adapter Set Included Free Four adapters each at 2", 3", and 6" heights ship with every OHX10000X — covering the full range of pickup trucks, SUVs, vans, and commercial vehicles your shop services daily. Most competitors charge extra for what Atlas includes in the box.

WHAT'S INCLUDED

• 12-Piece Truck Adapter Set (4 × 2", 4 × 3", 4 × 6")

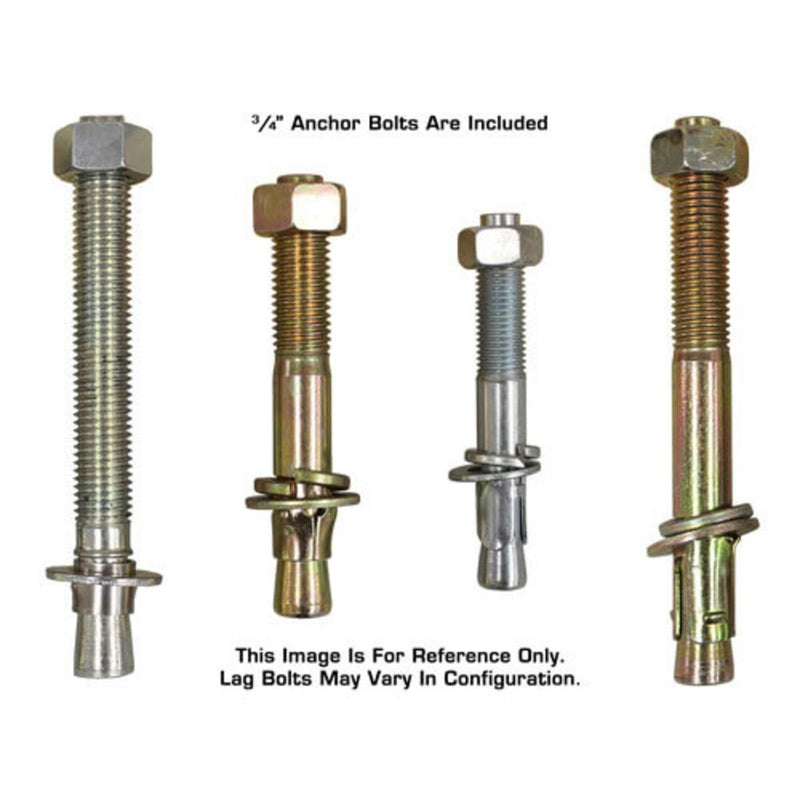

• Mounting Hardware

Oil (3–5 gallons AW32/AW46) not included. Minimum 13-foot ceiling required for column installation.

INSTALLATION REQUIREMENTS

• Electrical: 220V / 1-phase, 30-amp breaker recommended
• Ceiling Clearance: Minimum 13' required for single-piece column installation
• Concrete: Minimum 4" thick, 3,000 PSI rating
