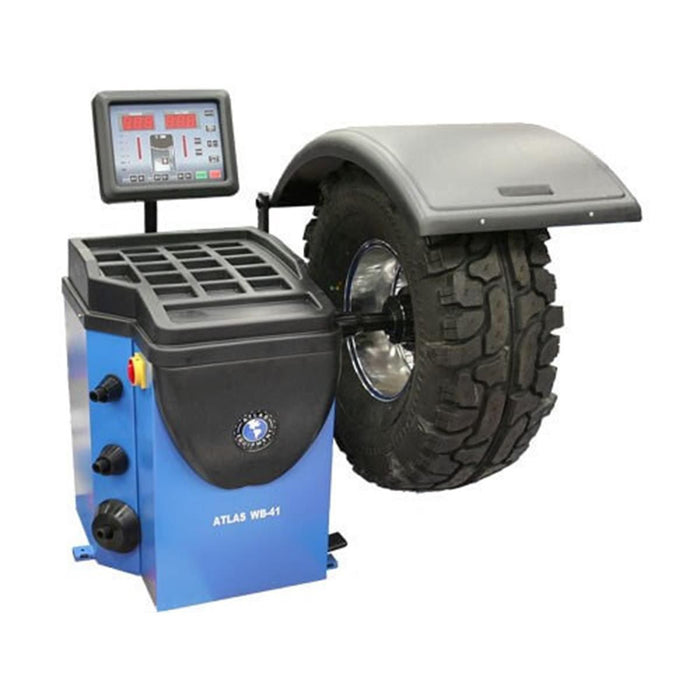

Atlas Equipment WB41 Self-Calibrating Computerized Wheel Balancer

The Atlas WB41 is the wheel balancer that independent shops keep coming back to — precise enough for high-end alloy wheels, tough enough for daily shop use, and simple enough that your techs can run it without a manual in hand.

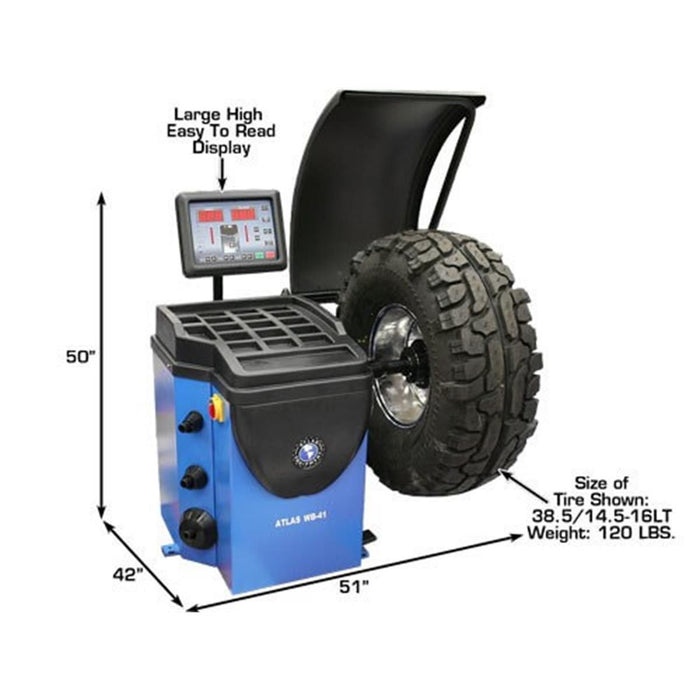

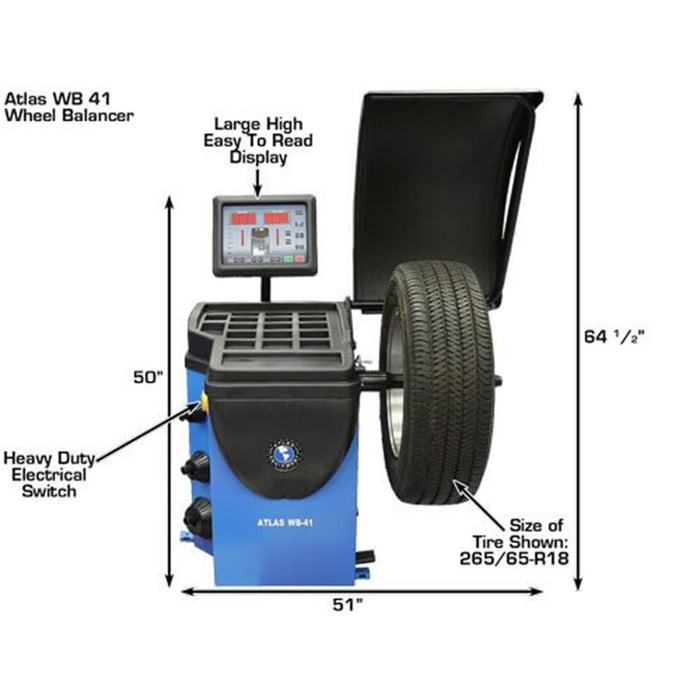

Built as the upgraded sibling to the popular Atlas WB11, the WB41 adds a raised easy-to-read display and a larger wheel weight tray — two features that sound small but make a real difference across a full day of balancing jobs. It handles everything from compact car wheels to 32" light truck rims with up to 150 lbs. of wheel weight capacity — and unlike balancers that merely claim 150 lb. capacity, the WB41 is engineered to accurately balance at that weight, not just physically support it.

Self-Calibrating — No Technician Required The WB41 self-calibrates and self-diagnoses. When something's off, it displays error codes in plain language so your tech can identify and fix the issue in-house. No waiting for a service call, no downtime, no expensive repair visits.

Automatic Hood Start/Stop Lower the hood and the spin cycle starts. Raise it and it stops. Paired with the automatic pedal-operated brake, the WB41 keeps your workflow moving without extra steps between every wheel.

1 Gram Accuracy Across the Full Range Static and dynamic balancing modes, 1 gram accuracy, and 1.4-degree weight position resolution mean your customers leave with wheels balanced right the first time. Measurements display in grams or ounces, mm or inches — your tech's preference.

No Anchor-Down Installation The WB41 doesn't require bolting to the floor. Roll it into position and start working — no concrete work, no contractor, no delay.

Pair It With the Atlas TC229 Tire Changer The WB41 is the natural partner to the Atlas TC229 — together they give your shop a complete wheel service setup. Change the tire on the TC229, balance it on the WB41, and send the customer out the door. Both ship freight-included from our warehouse directly to yours.

WHAT'S INCLUDED

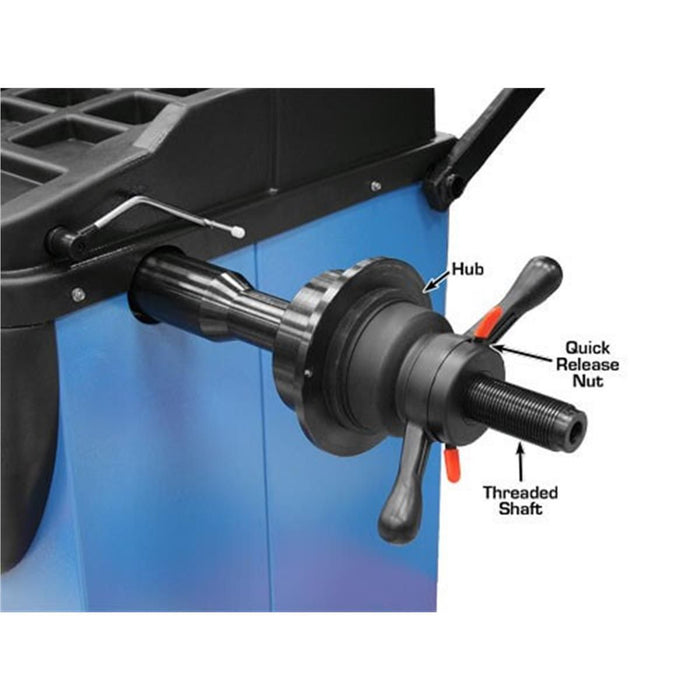

• Plastic Quick-Release Nut

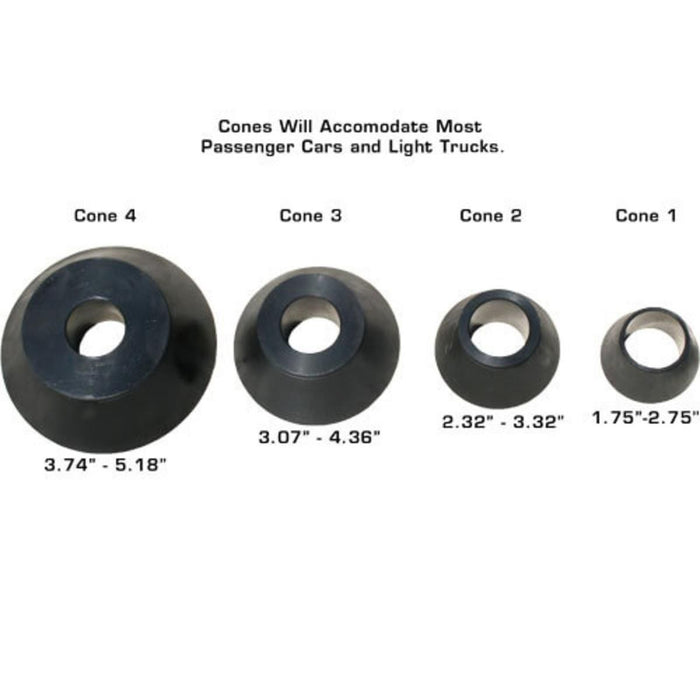

• 4 Centering Cones (covers center holes 1.75"–5.18")
• Wheel Weight Pliers
• Measuring Calipers

Light Truck Adapter Kit available separately for larger center holes and offset wheels.
