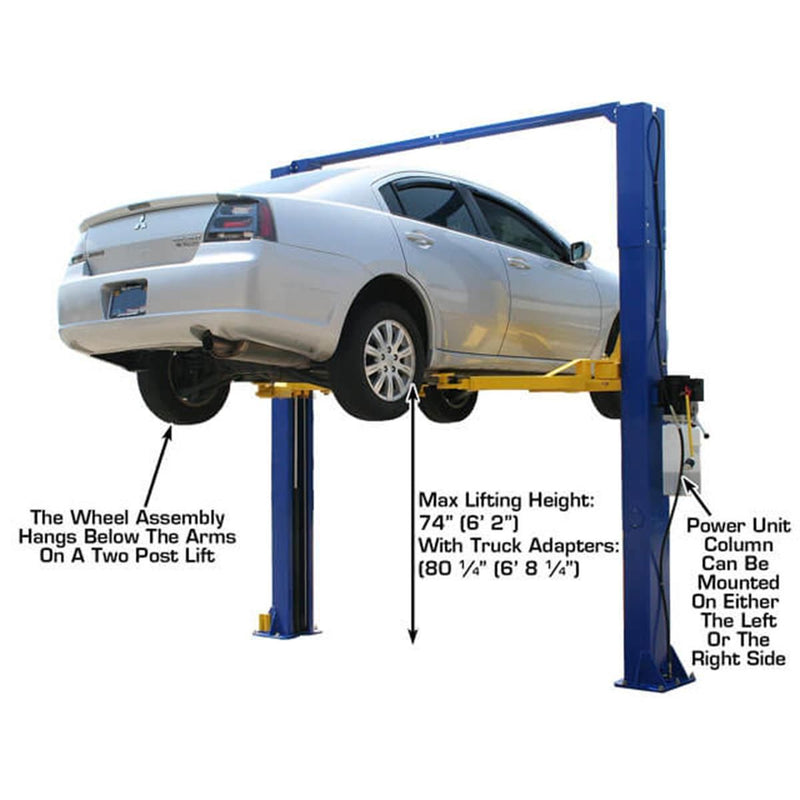

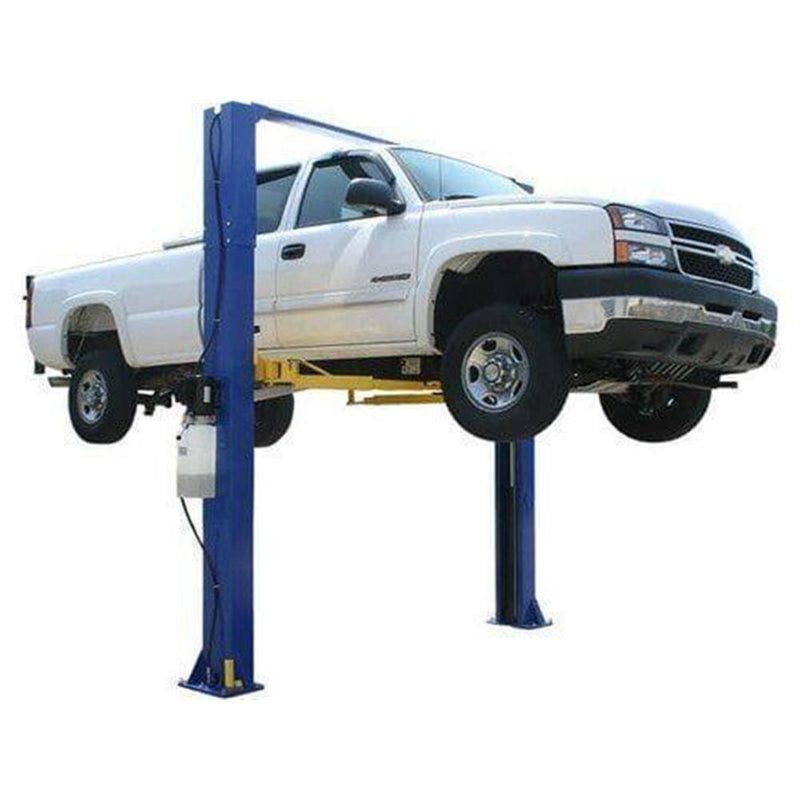

Atlas Equipment 9KOHX Overhead 2-Post Lift — 9,000 lb. Capacity

The Atlas 9KOHX is the overhead 2-post lift that delivers a clean, open shop floor and a true 9,000 lb. capacity — at a price point that makes it the go-to choice for independent repair shops, smaller commercial facilities, and serious home garages that refuse to compromise on quality.

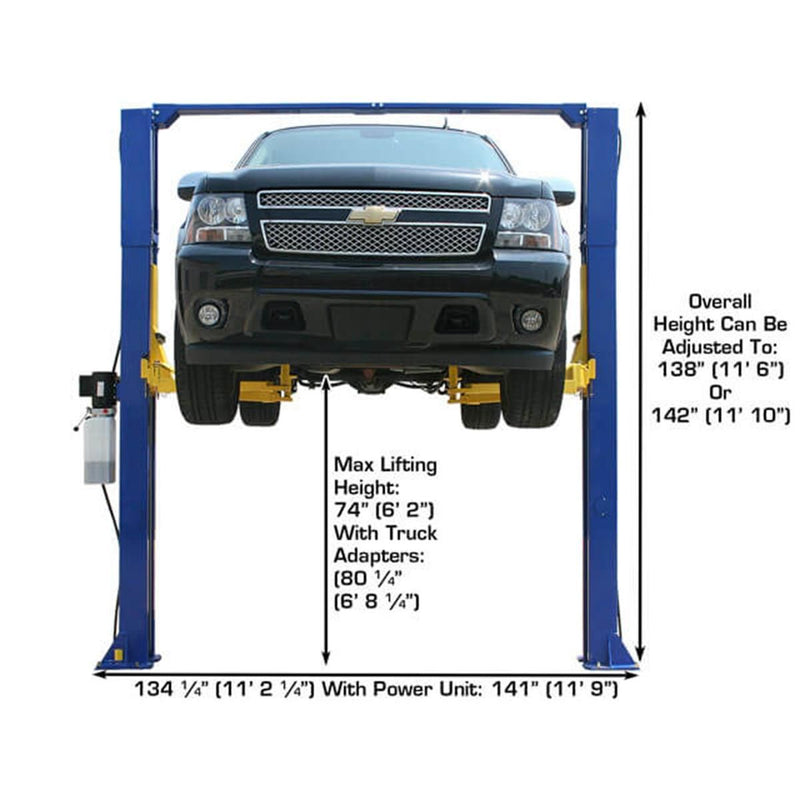

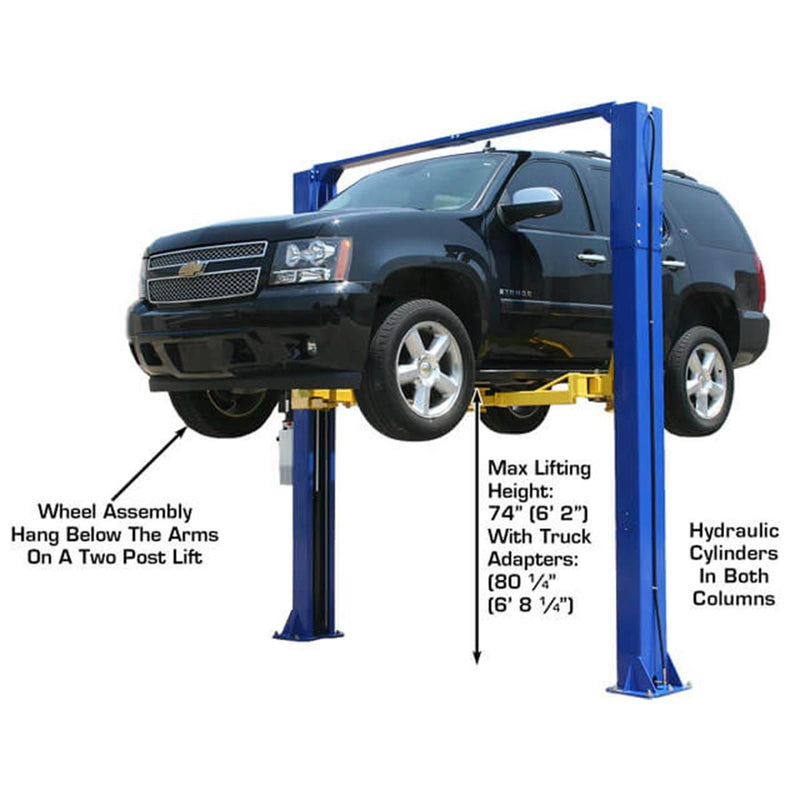

At 12 feet tall with an overhead cylinder design, the 9KOHX keeps all hydraulics up in the crossbar where they belong — completely out of the way of your technicians, your tools, and your floor. No hydraulic cylinder running up the column to create door dings. No tripping hazards. Just a clean, open bay underneath the vehicle where your tech can move freely and work efficiently.

True 9,000 lb. Capacity The 9KOHX is rated to a genuine 9,000 lbs. — not a marketing figure. Dual direct-drive cylinders power the lift with fewer moving parts than traditional single-cylinder designs, meaning less maintenance, fewer failure points, and years of reliable service.

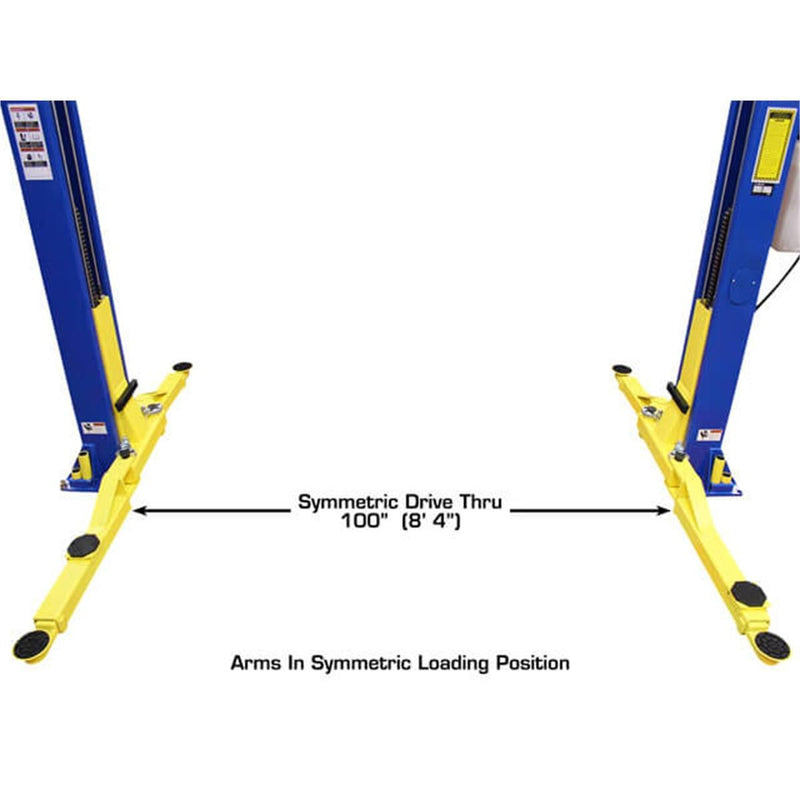

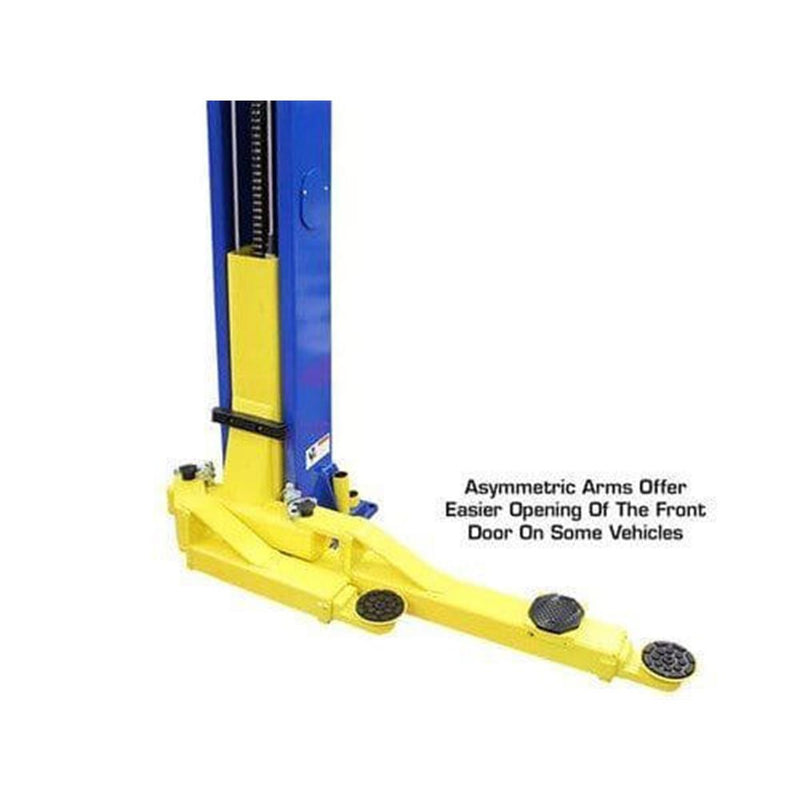

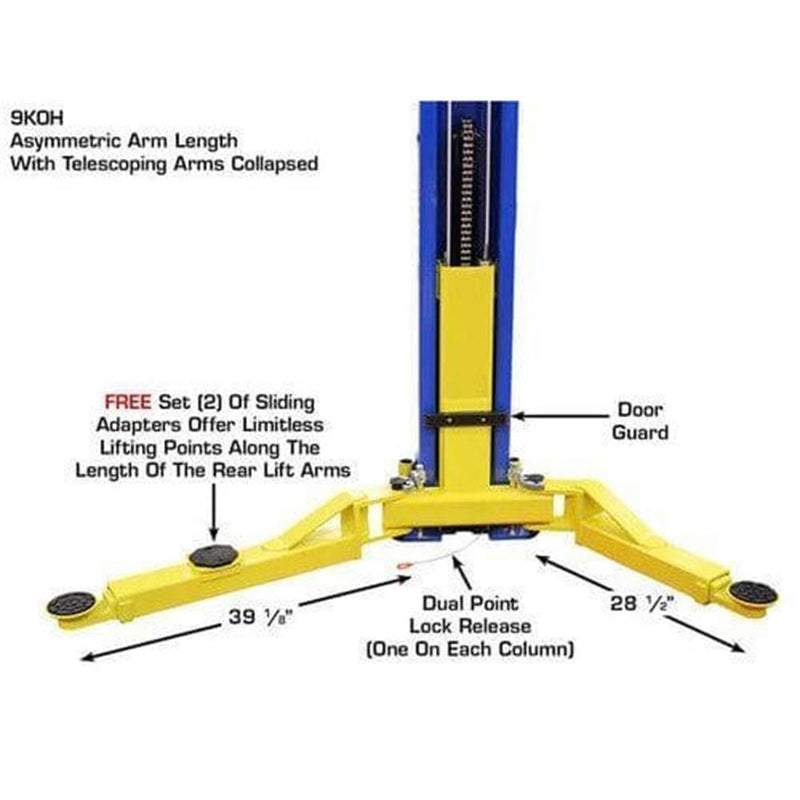

Asymmetric/Symmetric Arms — Maximum Versatility The 9KOHX ships with specially designed arms that convert between symmetric and asymmetric configurations. Asymmetric positioning moves the vehicle rearward in the bay, keeping doors clear of the columns so technicians can open them fully while the car is in the air. The EZ-metric arm configuration drops pad height to just 4½" at its lowest position — low enough to get under compact cars with tight pickup points and high enough to reach heavy truck frames without adapters.

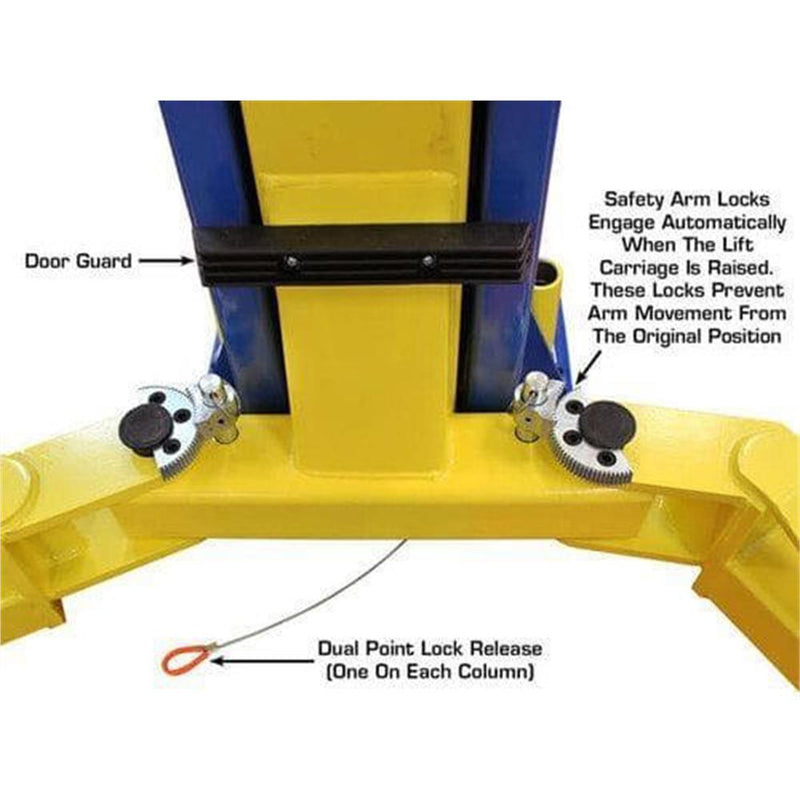

Automatic Arm Restraints Arms lock automatically when the lift rises, preventing accidental movement during service. Combined with the single-point lock release, the 9KOHX keeps every lift cycle safe and consistent — no manual lock checks, no inconsistencies between technicians.

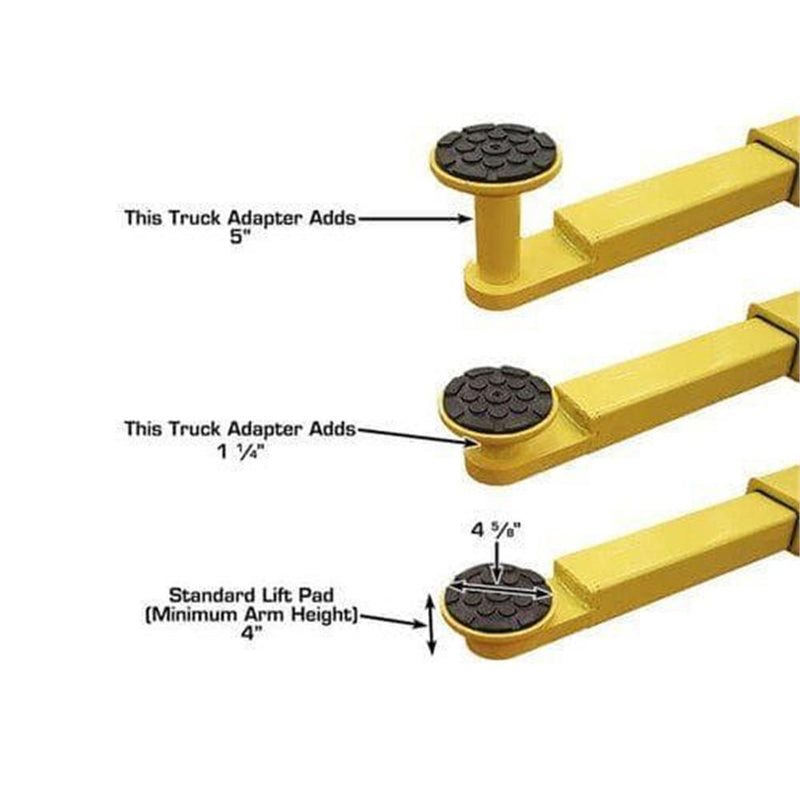

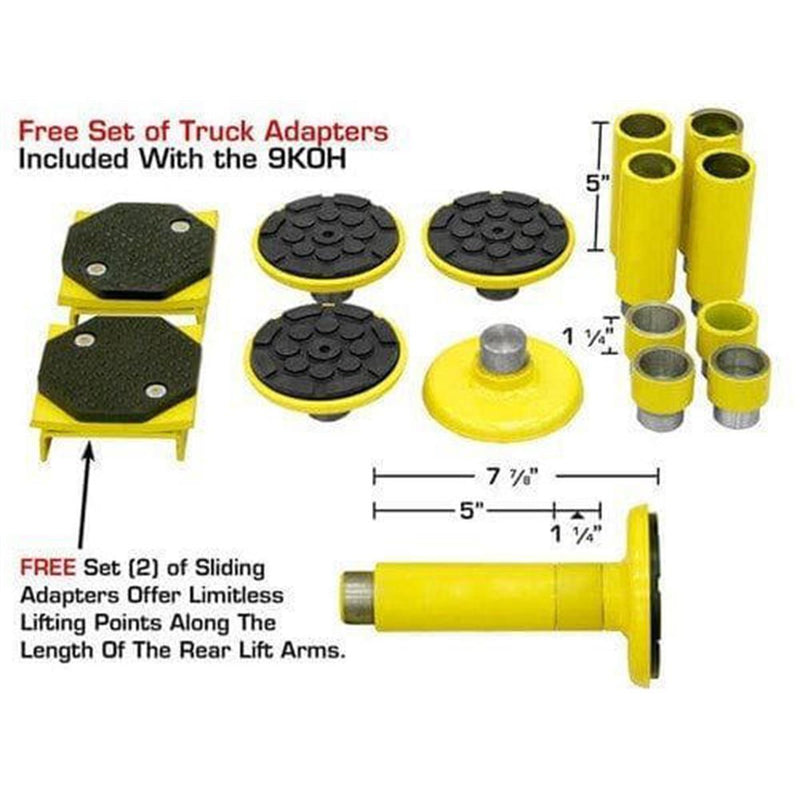

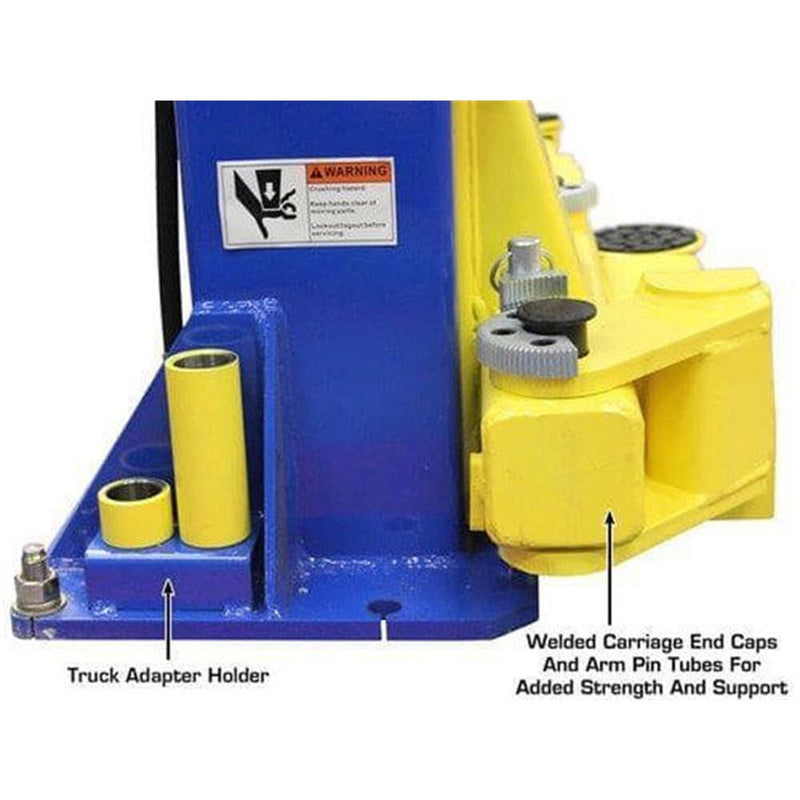

Free 8-Piece Truck Adapter Set Included The 9KOHX ships with a full 8-piece truck adapter set at no extra charge — four adapters at 1.5" and four at 5" height — covering the pickup trucks, SUVs, and vans that make up a large share of most shops' daily workload.

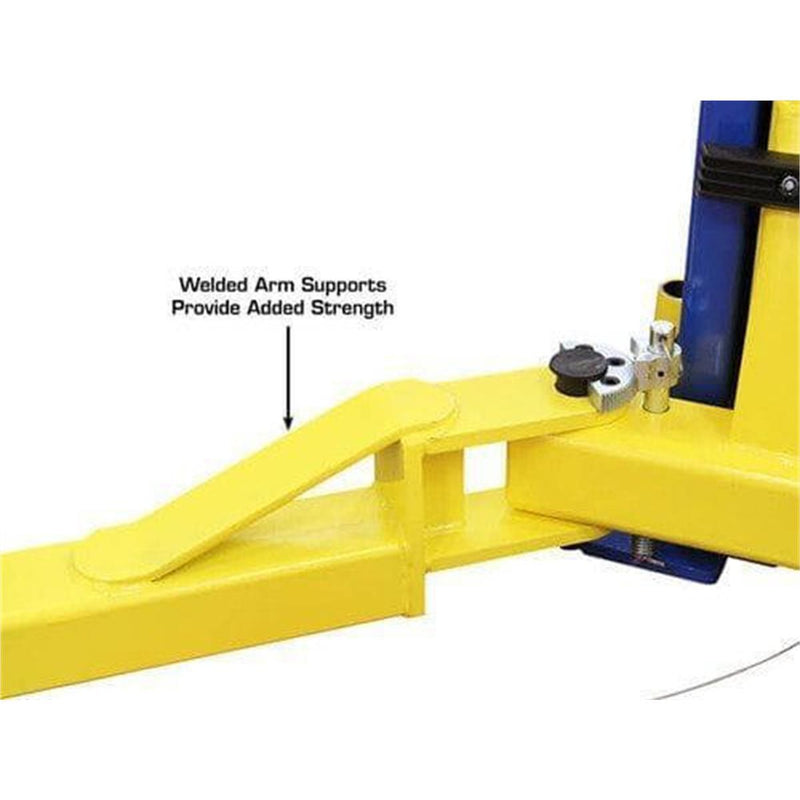

Powder Coat Finish, Built to Last Heavy-gauge steel construction with a durable powder coat finish stands up to the daily wear of a working shop. Rubber carriage guards protect vehicle doors and body panels during every lift cycle.

WHAT'S INCLUDED

• 8-Piece Truck Adapter Set (4 × 1.5", 4 × 5")

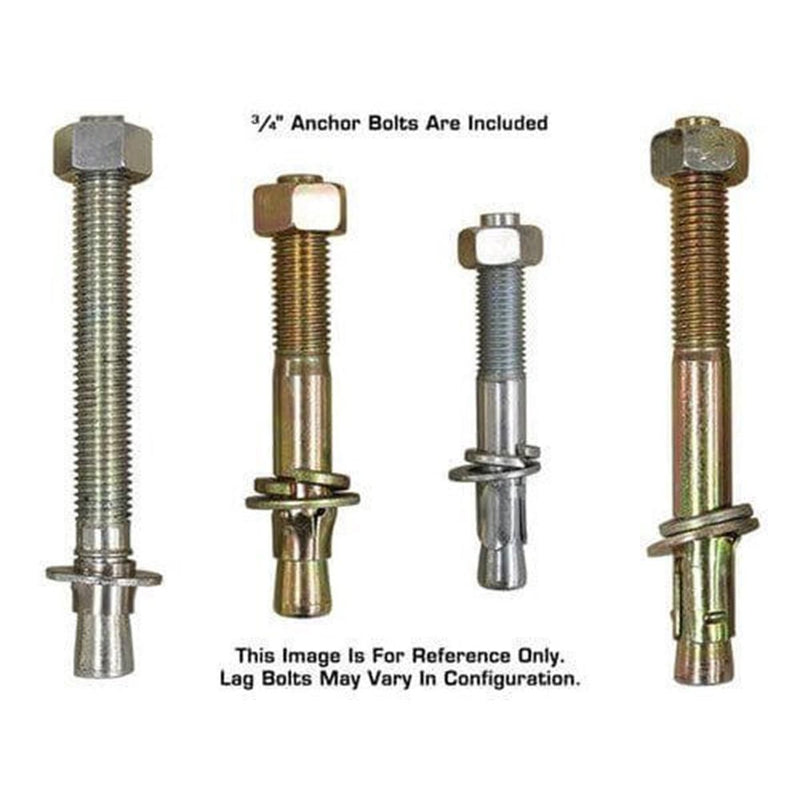

• Mounting Hardware

Oil (3–5 gallons AW32/AW46) not included.

INSTALLATION REQUIREMENTS

• Electrical: 220V / 1-phase, 30-amp breaker recommended

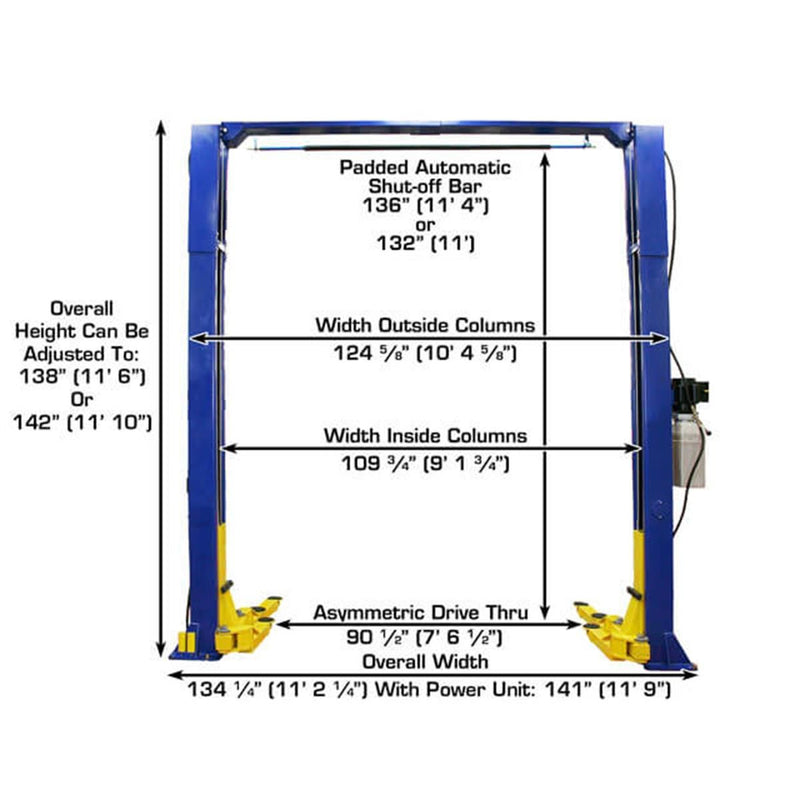

• Ceiling Clearance: Minimum 12' (144") required
• Concrete: Consult owner's manual for minimum slab requirements

SPECIFICATIONS
